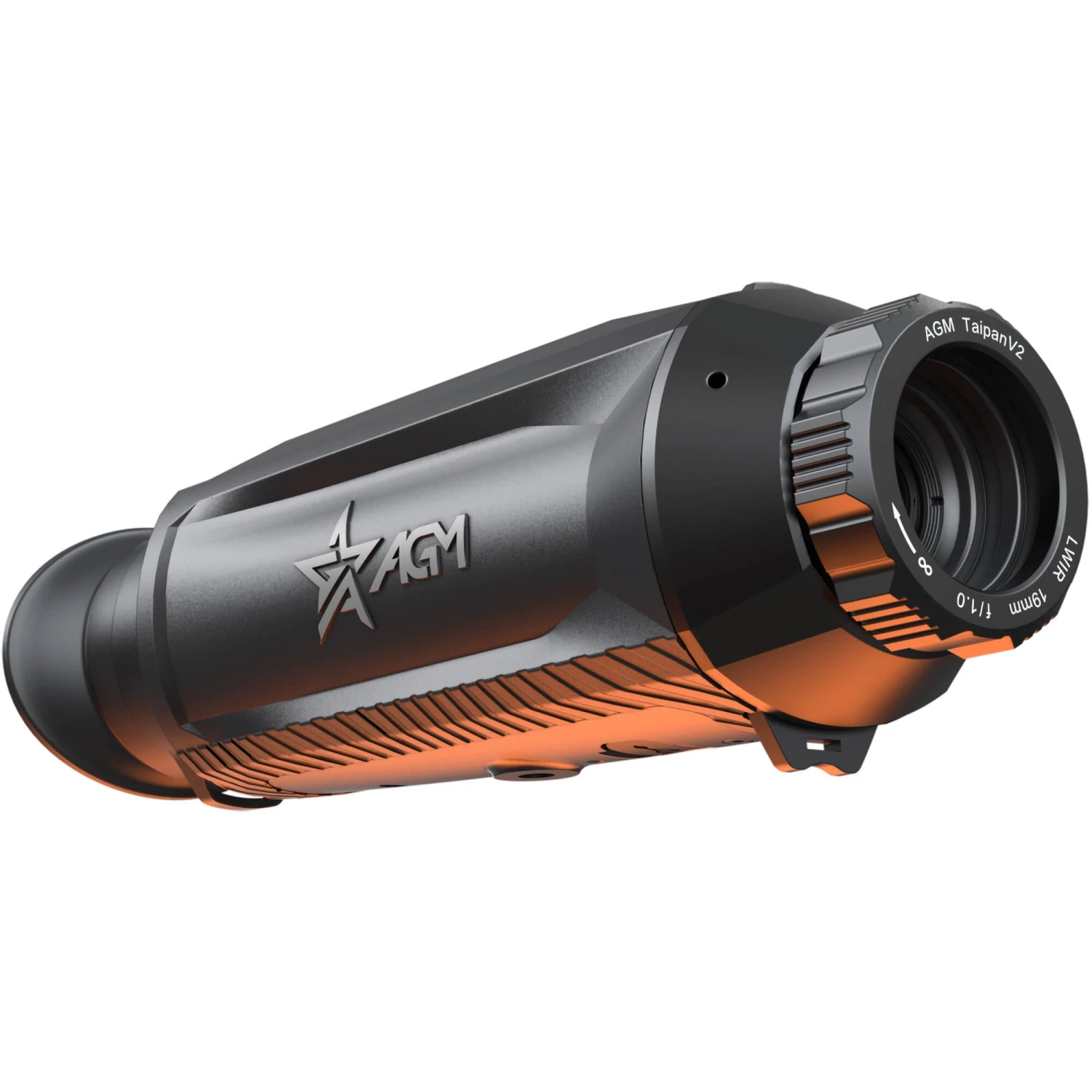

AGM TaipanV2 19-320 Thermal Imaging Monocular (50 Hz)(Agm Taipanv2 19 320 Thermal Imaging Monocular 50 Hz)

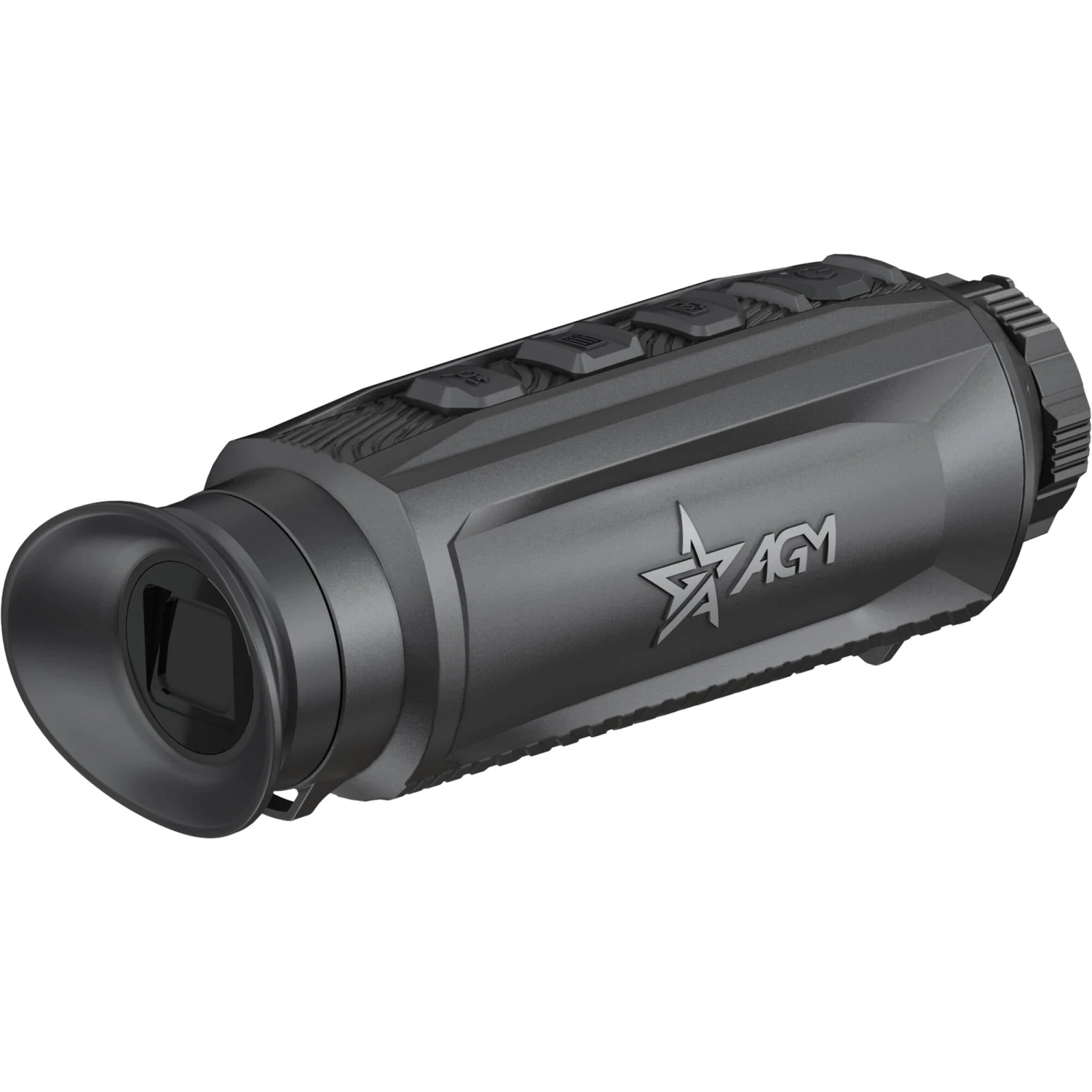

AGM TaipanV2 19-320 Thermal Imaging Monocular (50 Hz)(Agm Taipanv2 19 320 Thermal Imaging Monocular 50 Hz) - Image 2

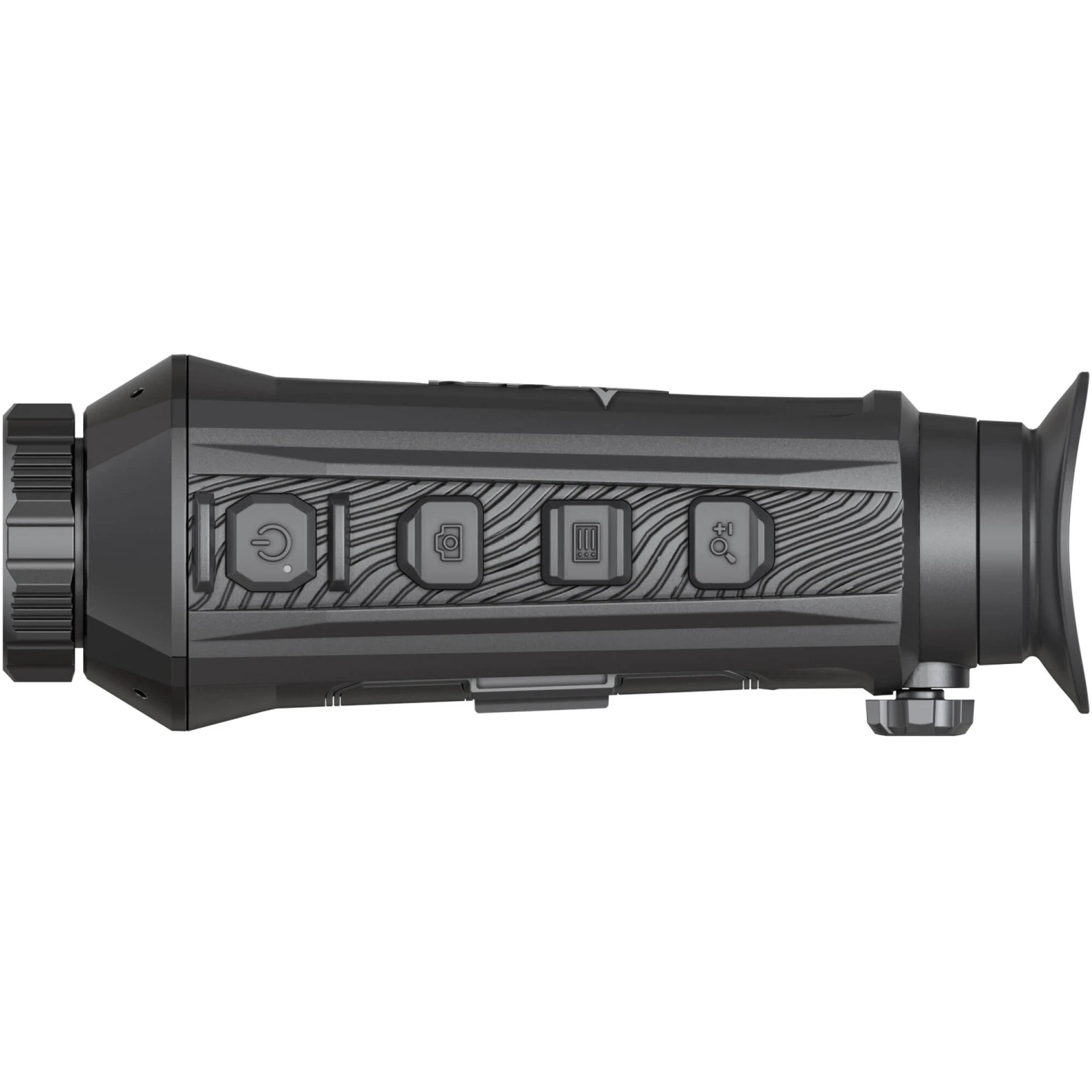

AGM TaipanV2 19-320 Thermal Imaging Monocular (50 Hz)(Agm Taipanv2 19 320 Thermal Imaging Monocular 50 Hz) - Image 3

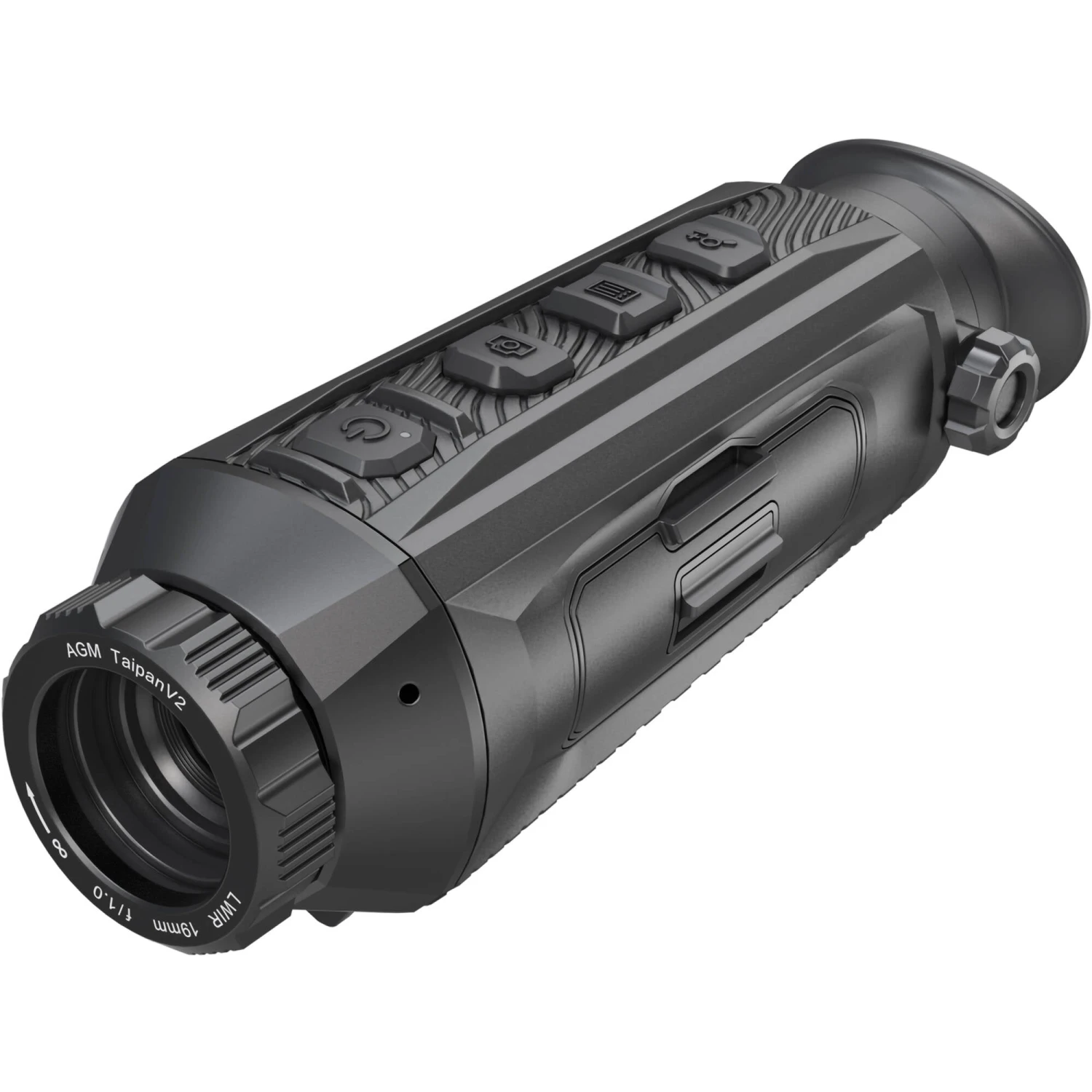

AGM TaipanV2 19-320 Thermal Imaging Monocular (50 Hz)(Agm Taipanv2 19 320 Thermal Imaging Monocular 50 Hz) - Image 4

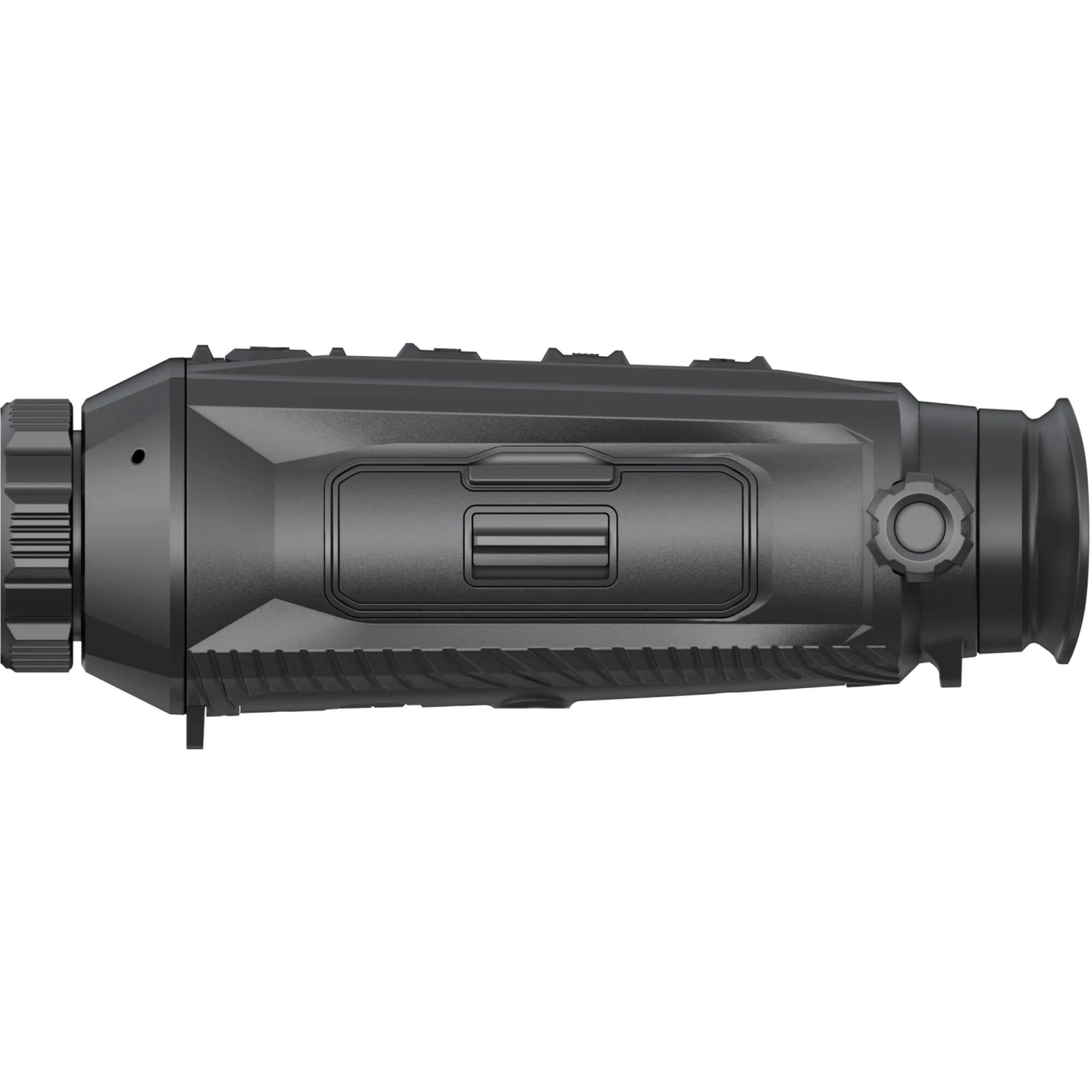

AGM TaipanV2 19-320 Thermal Imaging Monocular (50 Hz)(Agm Taipanv2 19 320 Thermal Imaging Monocular 50 Hz) - Image 5

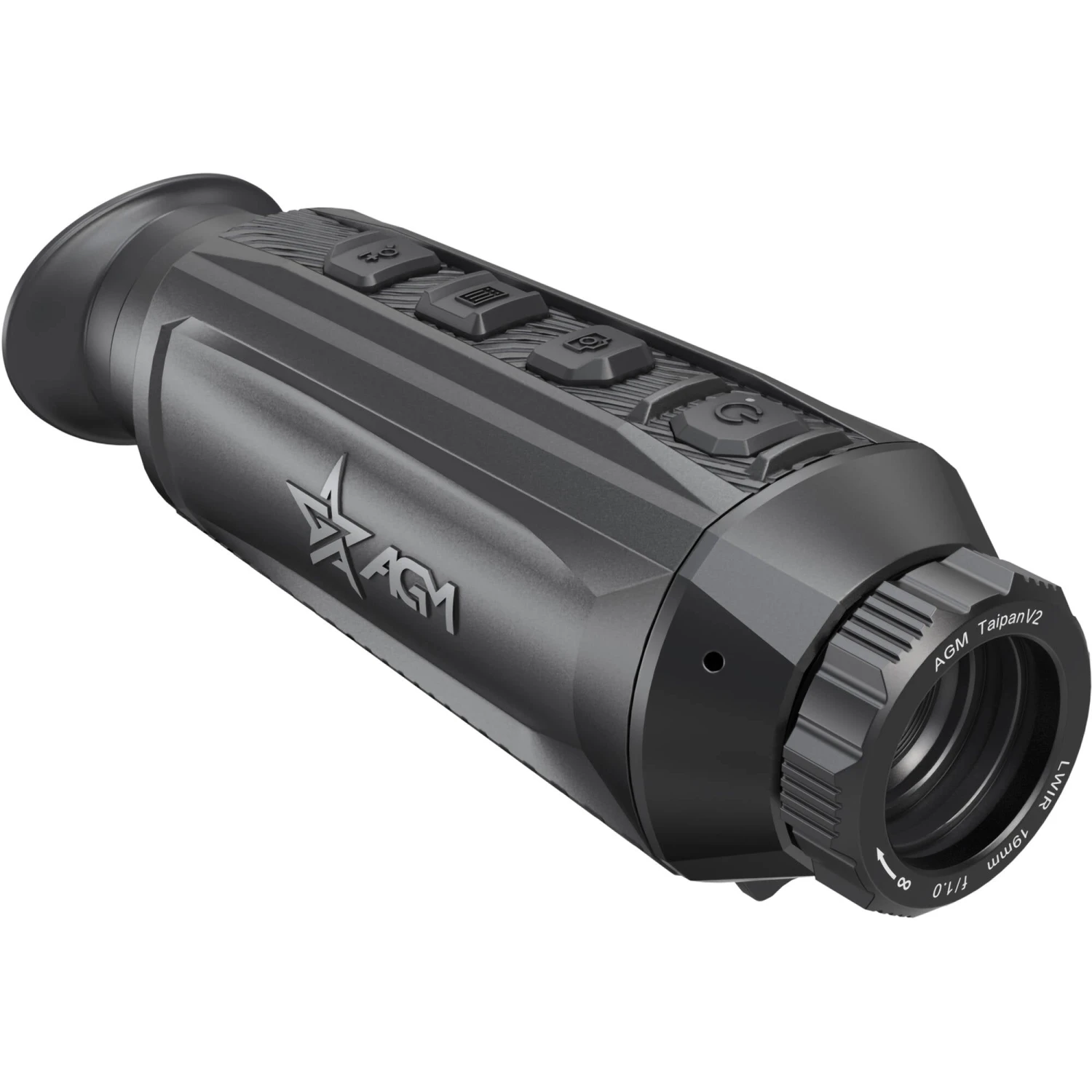

AGM TaipanV2 19-320 Thermal Imaging Monocular (50 Hz)(Agm Taipanv2 19 320 Thermal Imaging Monocular 50 Hz) - Image 6

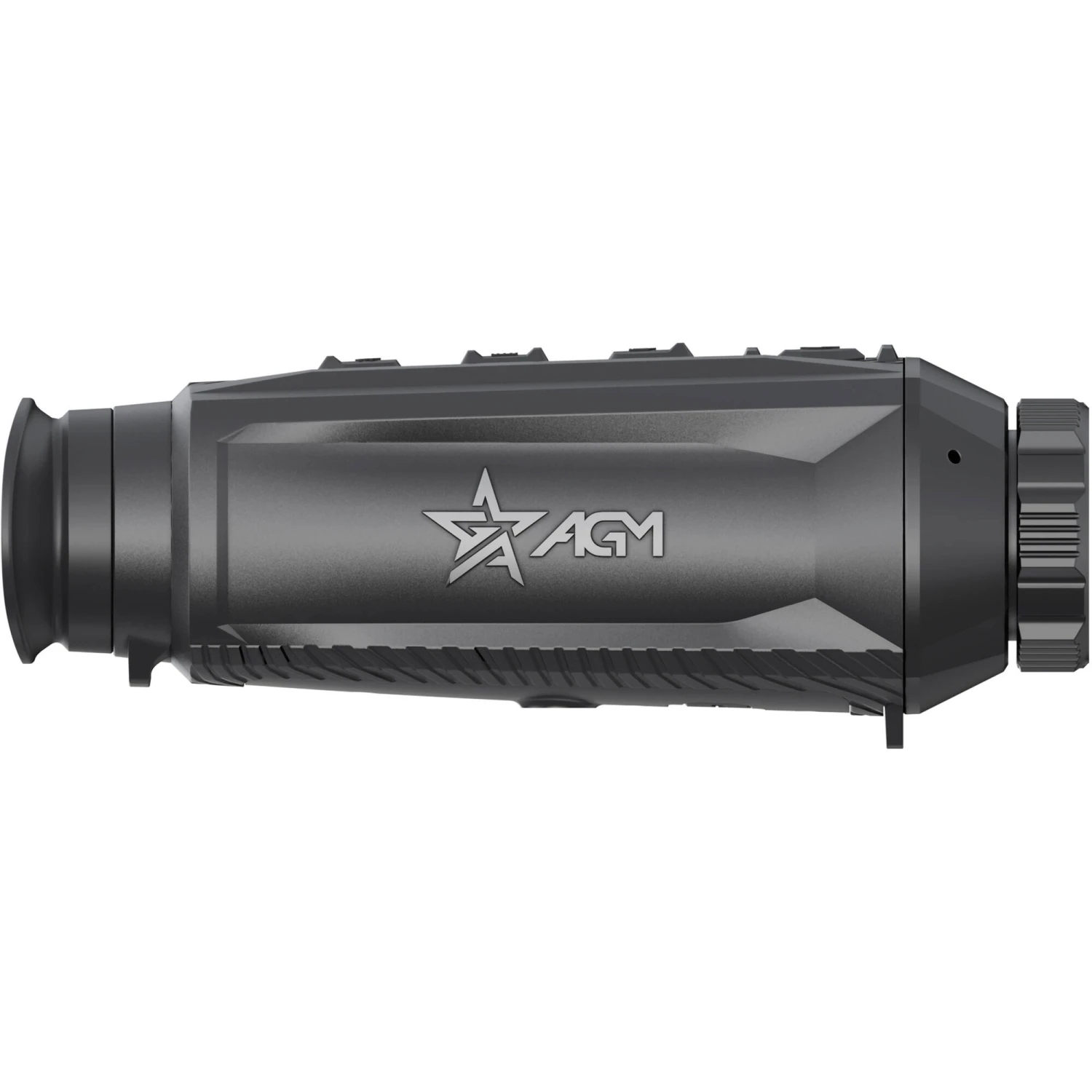

AGM TaipanV2 19-320 Thermal Imaging Monocular (50 Hz)(Agm Taipanv2 19 320 Thermal Imaging Monocular 50 Hz) - Image 7

AGM TaipanV2 19-320 Thermal Imaging Monocular (50 Hz)(Agm Taipanv2 19 320 Thermal Imaging Monocular 50 Hz)

Original price was: $368.00.Current price is: $97.99.

SKU: DGFUB 7132926902357 Categories: Night & Thermal Vision, Optics, Optics & Surveillance Tags: AGM Taipan V2 19-320, Night & Thermal Vision, Optics, Thermal Imagers

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

AGM Taipan V2 19-320 Overview

Defy the darkness with the Taipan V2 19-320 Thermal Imaging Monocular from AGM. A replacement for the Seeker line of thermals, this imager boasts several upgrades from previous models, including a sub-35mK thermal detector, a removable rechargeable 18650 battery, and a 90° tilt sensor that turns the monocular on when lifted and off when lowered.

The Taipan V2’s 19mm f/1.0 lens produces 3x optical magnification that zooms digitally 1-8x for distant targets, and it can spot heat signatures more than 1038 yards away. It offers four color palettes and saves video and photos to 16GB of built-in storage; you can share video and images to your phone or tablet via Wi-Fi or USB-C.

Note:

Export of the device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security.

Imager & Optical System

320 x 256 vanadium oxide thermal sensor
Under 35mK noise equivalent temperature difference for clean image
8- to 14-micron spectral response
19mm f/1.0 lens, 3x magnification, 1x/2x/4x/8x digital zoom

Video Performance & Display

50 Hz refresh rate for smooth video capture
1280 x 960 LCOS display
Black hot, white hot, red hot, fusion palettes
16GB onboard memory

Use and Handling

Removable, rechargeable 18650 li-ion battery
USB-C recharging
90° tilt sensor powers off display to save battery life
IP67 rated, dust-tight, submersible to 3.3′
Pairs via built-in Wi-Fi hotspot with devices running the AGM Connect App
Wide rubber eyepiece for viewing comfort

UPC: 810164391636

Items Included

AGM TaipanV2 19-320 Thermal Imaging Monocular (50 Hz)
18650 Battery
USB Cable
AC Adapter/Charger with US & EU Plugs
Lanyard
Lens Cloth
Carry Bag
Limited 5-Year Manufacturer Warranty

Additional Resources

No additional resources available

AGM Taipan V2 19-320 Specs

Key Specs

Configuration	Monocular
Sensor Size	320 x 256
Display	1280 x 960
Magnification	3x 1 to 8x
Inputs/Outputs	1x USB-C (5 VDC at 2 A)
Battery	Rechargeable Lithium-Ion

General

Configuration	Monocular
Sensor Size	320 x 256
Display	1280 x 960
Refresh Rate	50 Hz
Pixel Size	12 µm
Spectral Range	8 to 14 µm
Thermal Sensitivity	<35 mK at f/1.0, 77°F / 25°C
Detection Range	1038 yd / 949.1 m

Performance

Magnification	3x 1 to 8x
Lens System	19 mm, f/1.0
Angle of View	17.5 x 13.1°
Diopter Adjustment	-5 to +3

Camera

Storage

16 GB via Built-In Memory

Connectivity

Wireless	Wi-Fi *Built-In
Inputs/Outputs	1x USB-C (5 VDC at 2 A)

Physical

Battery	Rechargeable Lithium-Ion
Operating Conditions	-22 to 131°F / -30 to 55°C
Environmental Resistance	Dust/Water-Resistant (IP67)
Dimensions	6.2 x 2.4 x 2.2″ / 15.7 x 6.1 x 5.6 cm
Weight	11 oz / 313 g (with Batteries)

Packaging Info

Package Weight	2.75 lb
Box Dimensions (LxWxH)	10 x 8 x 3.7″
