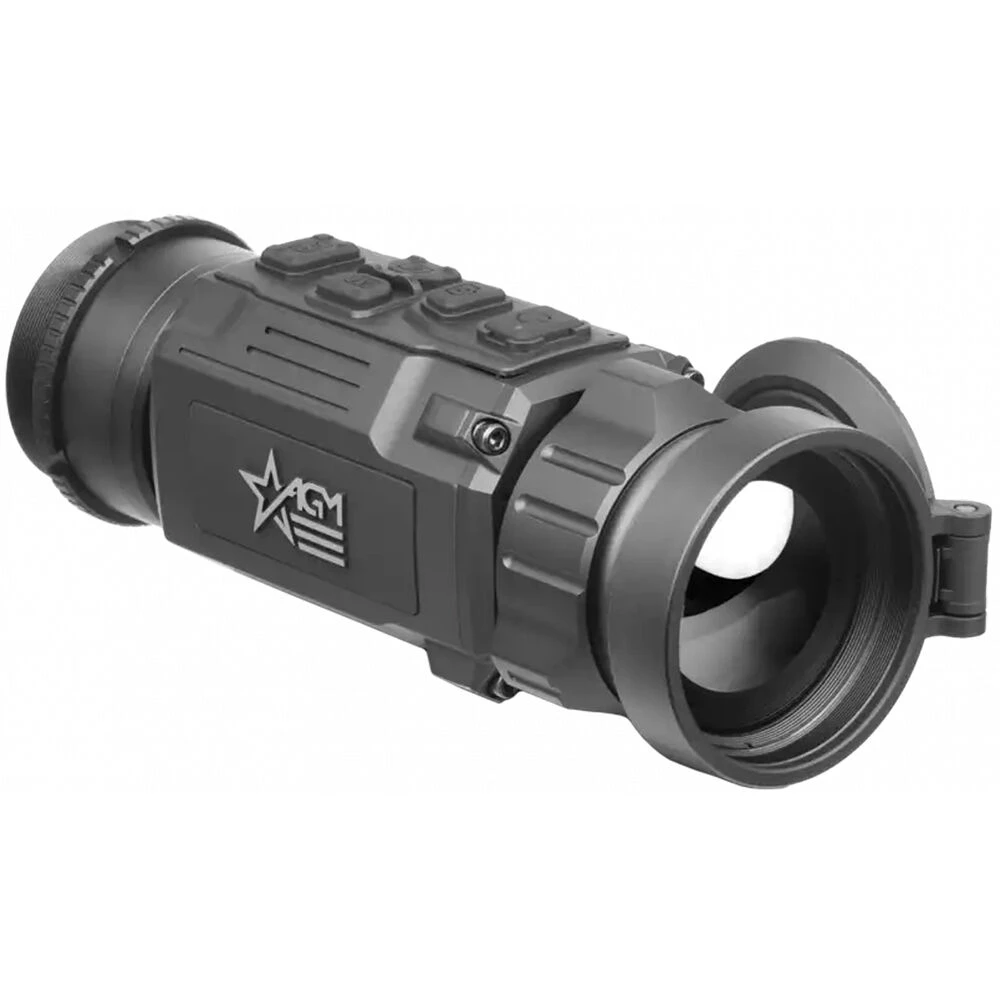

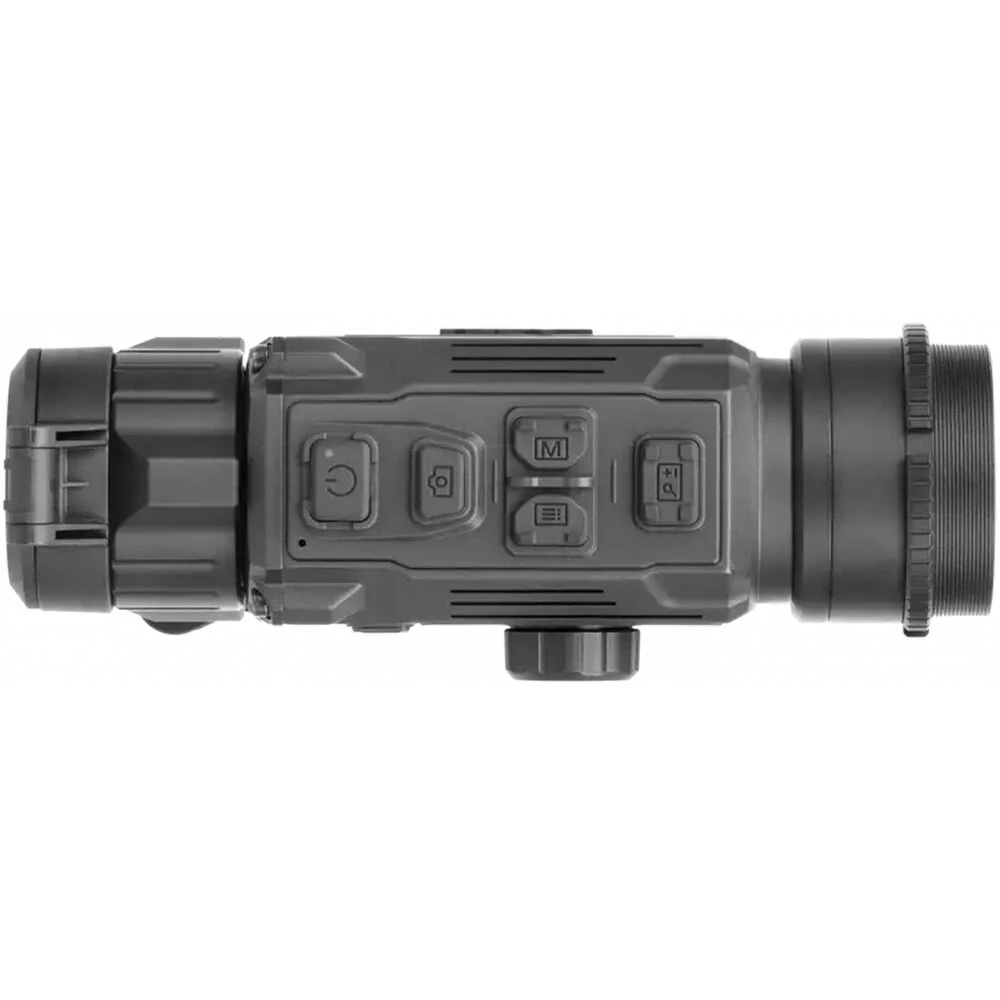

AGM Rattler-C V2 Overview
Upgraded from previous models with a rechargeable battery, shot-activated recording with sound, and a sub-20mK, 12µ sensor, the Rattler-C V2 50-640 Rechargeable Thermal Imaging Clip-On from AGM turns your daytime riflescope into a powerful night-vision optic. The Rattler-C V2 is optimized for hunting with images in four colors and two scene modes, Cold and Warm. The clip-on comes with two rechargeable batteries, each with a runtime of 9 hours, so you can hunt right through the night. You can also capture and save video to built-in memory or export it via Wi-Fi or USB-C.
The Rattler-C V2 is built around a 12-micron, 50 Hz sensor that captures 640 x 512 resolution images and displays them on a 1024 x 768 OLED screen. The under-20 NETD rating ensures a low-noise view. The 50mm f/1.0 lens yields a 8.8 x 7.0° field of view. Rated IP67, the device is designed to withstand rainy or dusty conditions.
- Replaceable proprietary Li-ion rechargeable battery, 9 hours runtime
- Sub-20mK NETD for low-noise imagery
- 640 x 512 resolution with 12-micron sensor
- 50 Hz refresh rate for smooth video
- 1024 x 768 OLED display
- Black hot, red hot, white hot, fusion color palettes
- Onboard video/audio recording and image capture
- Built-in eMMC memory, 16 GB
- Shot-Activated Recording
- Wi-Fi data transmission
- Stadiametric rangefinder
- Standby mode
- IP67 dust and waterproof
- Withstands recoil up to 1000G
In the Box
- AGM Rattler-C V2 50-640 Rechargeable Thermal Imaging Clip-On (50 Hz)
- Mount
- 2 x Rechargeable Li-Ion Battery
- Battery Charger
- USB Cable
- Lens Cloth
- Case
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
AGM Rattler-C V2Specs
| Sensor Size |
384 x 288 |
| Display |
1024 x 768 |
| Magnification |
Optical: 2x Digital: 1 to 8x |
| Inputs/Outputs |
1x USB-C |
| Battery |
2x Rechargeable Lithium-Ion (Approx. 9 Hours) |
| Sensor Size |
384 x 288 |
| Display |
1024 x 768 |
| Refresh Rate |
50 Hz |
| Pixel Size |
12 µm |
| Thermal Sensitivity |
<20 mK at f/1.0, 77°F / 25°C |
| Detection Range |
1312.8 yd / 1200 m |
| Built-In Mic |
Yes |
| Magnification |
Optical: 2x Digital: 1 to 8x |
| Lens System |
25 mm, f/1.0 |
| Angle of View |
10.5 x 7.9° |
| Minimum Focus Distance |
1.6′ / 0.5 m |
| Exit Pupil Diameter |
6 mm |
| Eye Relief |
45 mm |
| Diopter Adjustment |
-5 to +5 |
| Storage |
16 GB via Built-In Memory |
| Wireless |
Wi-Fi *Built-In |
| Inputs/Outputs |
1x USB-C |
| GPS |
No |
| Battery |
2x Rechargeable Lithium-Ion (Approx. 9 Hours) |
| Operating Conditions |
-22 to 131°F / -30 to 55°C |
| Environmental Resistance |
Dust/Water-Resistant (IP67) |
| Dimensions |
8.5 x 2.7 x 2.6″ / 21.6 x 6.9 x 6.6 cm |
| Weight |
17.3 oz / 490.5 g |
| Package Weight |
5.91 lb |
| Box Dimensions (LxWxH) |
14.7 x 11.4 x 5.2″ |
