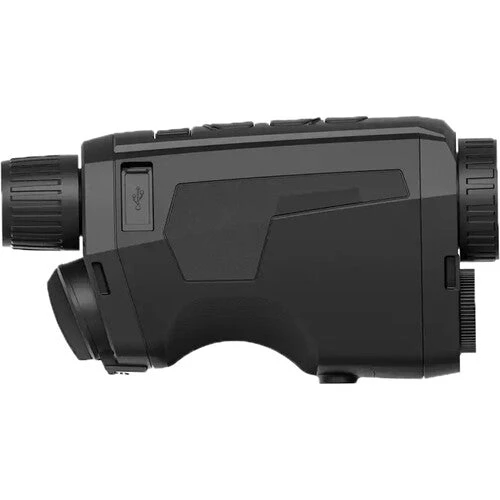

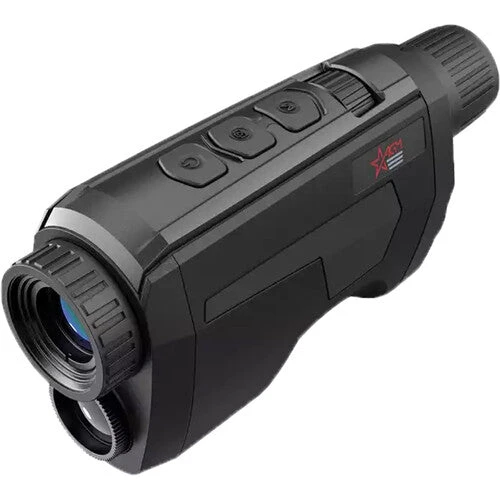

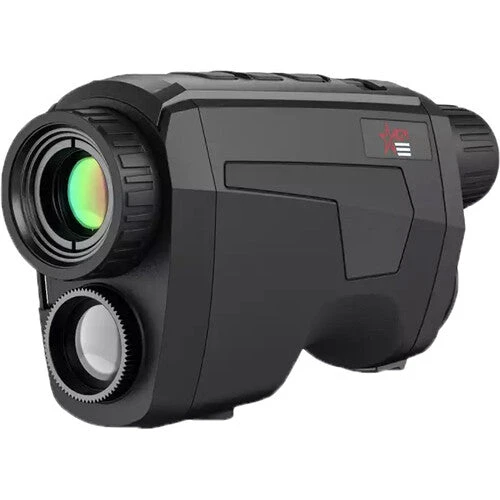

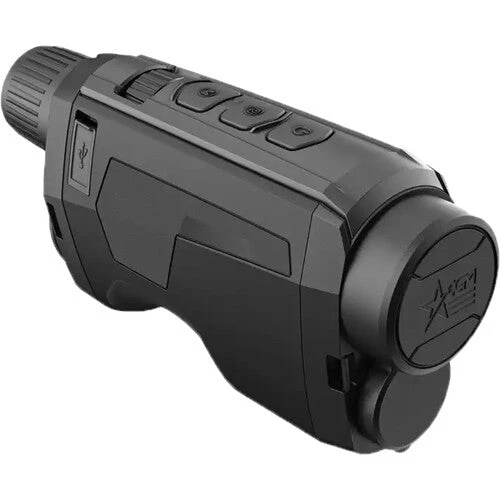

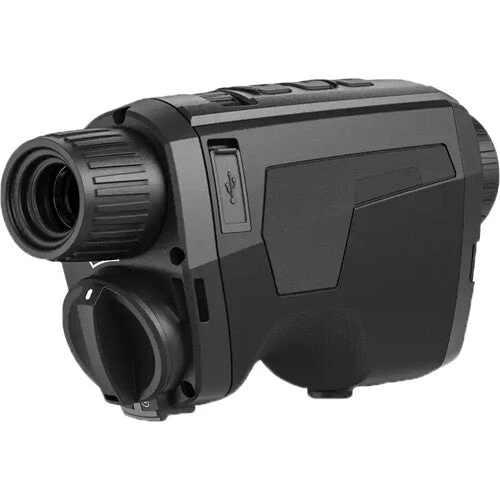

The AGM Fuzion TM35-384 x 288 Thermal Imaging & CMOS Monocular offers three ways to see what’s hidden from sight: an optical image, a thermal image, and a fusion of the two that that can be adapted to environmental conditions. Equipped with a 12?m high-sensitivity thermal detector, a 1024 x 768 OLED display, and an eyepiece with a large field of view, the monocular can quickly detect objects obscured by smoke, fog, rain, snow, etc.
An f/1.0 22mm objective lens gathers ample thermal radiation for crisp, clear imagery, shown on an OLED display. Digital magnification levels are 1x, 2x, 4x, and 8x. Power is supplied by one rechargeable 18650 battery with a maximum runtime of five hours�longer when using a separately sold external power supply. The Fuzion’s user-friendly interface and ergonomic controls make operation simple, so you can concentrate on the task at hand. The unit carries an IP67 water- and dust-resistance rating, so inclement weather isn’t a concern.
- Optical, thermal, and optical-thermal fusion modes
- Fusion image can be manipulated for optimal view
- 12-micron pixel pitch microbolometer
- Resolution: 384 x 288 pixels
- Refresh rate: 50 Hz
- Lens system: 22mm, f/1.0
- Optical magnification: 2x
- Digital zoom: 1x, 2x, 4x, 8x
- Field of view: 10.5 x 7.9°
- Ultra-low light optical channel
- 1024 x 768 color display
- Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion color palettes
- IP67-rated waterproof and dust-tight
- Can send video to optional video recorder
- Wi-Fi hotspot
- Standby mode
- Runs on one rechargeable 18650 battery, five hours maximum runtime
Quick Start Guide
0.6 MB
- Description
- Imaging Performance
- Optical Performance
- Video Features
- Construction Details
AGM Fuzion Specs
| Configuration | Monocular |
| Sensor Size | 384 x 288 |
| Display | 1024 x 768 |
| Refresh Rate | 50 Hz |
| Pixel Size | 12 µm |
| Spectral Range | 8 to 14 µm |
| Thermal Sensitivity | <35 mK |
| Magnification | Optical: 2.5x Digital: 1 to 8x |
| Lens System | 22 mm, f/1.0 |
| Angle of View | 10.5 x 7.9° |
| Storage | 16 GB via Built-In Memory |
| Wi-Fi | Yes |
| Bluetooth | None |
| Inputs/Outputs | 1 x Unspecified USB |
| Accuracy | 1.1 yd / 1 m |
| Battery | 18650 |
| Operating Temperature | -4 to 131°F / -20 to 55°C |
| Water Resistance | Waterproof, IP67 |
| Dimensions | 6.3 x 3.4 x 2″ / 16 x 8.6 x 5.1 cm |
| Weight | 16.6 oz / 470.0 g |
| Package Weight | 3.785 lb |
| Box Dimensions (LxWxH) | 9.6 x 7.3 x 6″ |
