Afinia Einscan-SP V2 Overview

1Description
2Extensive Scanning
3Coded Targets & Markers
4Quick Scanning Capable
53D Printer Compatible
6Post-Processing

For designers looking to recreate detailed models with accurate 3D scans, the Afinia EinScan-SP V2 3D Scanner with Turntable enables experienced modelers to easily capture their subjects for reverse engineering, modification during the printing process, and more.

Comprised of a removable scanner with white light LED technology and turntable, scan items as small as 7.9 x 7.9 x 7.9″ and as large as 27.5 x 27.5 x 27.5″. Built-in texture capture ensures each model is digitally recreated with fine details, making reproduction precise with 0.05mm accuracy. You get single scan and turntable scan modes which allow you to take single shots from multiple angles or have a full 45-second rotation to capture all angles. Automatic calibration reduces your setup time, and if you wish to adjust your scanning distance, you can pair the scanner with an optional tripod.

Extensive Scanning

Depending on the size of the object, scanning can be carried out using a turntable for automatic scanning or a tripod for manual scanning.

Coded Targets & Markers

The EinScan includes turntable coded targets and markers to help with calibration and ensure optimal scanning conditions.

Quick Scanning Capable

The EinScan-SP V2 gives you one-click scanning, automatic calibration with no rigid setup required, 1-second single scan, and 45-second 360° scan under auto scan mode.

3D Printer Compatible

The EinScan can provides you with open API access service so you can use your captures with multiple 3D printer brands.

Post-Processing

Software of EinScan-SP V2 has the functions of filling holes, smoothing, and sharpening, and can also readjust the data coordinates in the post-processing process to provide more accurate 3D data for subsequent applications.

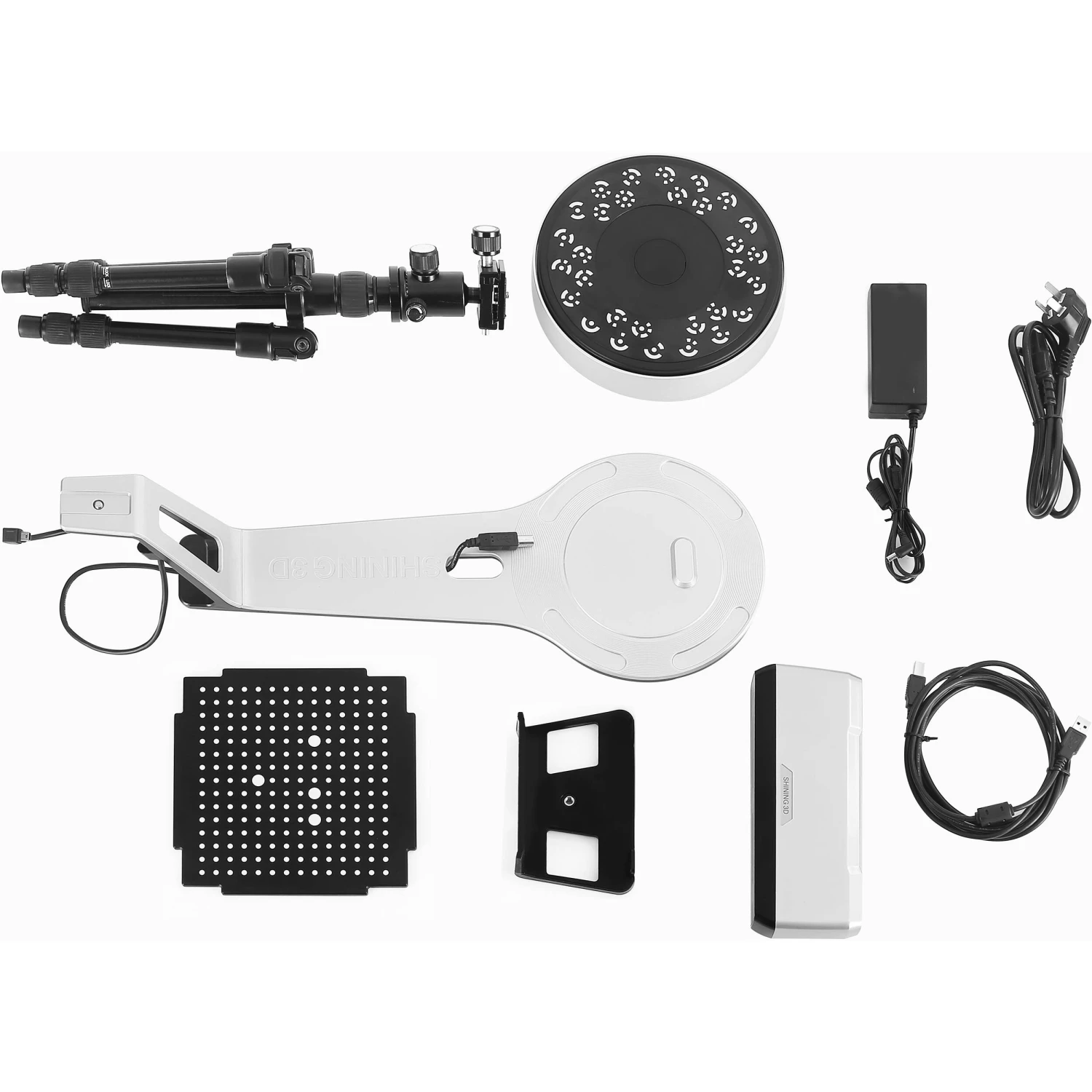

In the Box

Afinia EinScan-SP V2 3D Scanner with Turntable
Limited 1-Year Manufacturer Warranty

Table of Contents

Description
Extensive Scanning
Coded Targets & Markers
Quick Scanning Capable
3D Printer Compatible
Post-Processing

Afinia Einscan-SP V2 Specs

Key Specs

Scan Volume	Minimum: 1.2 x 1.2 x 1.2″ / 30 x 30 x 30 mm Maximum: 27.6 x 27.6 x 27.6″ / 700 x 700 x 700 mm (Fixed) 7.9 x 7.9 x 7.9″ / 200 x 200 x 200 mm (Auto)
Scan Speed	1 Second (Fixed) 45 Second (Auto)
Accuracy	0.05 mm
Image Resolution	1.3 MP
System Connection	USB-A 2.0
File Formats	ASC, OBJ, PLY, STL

General

Scan Volume	Minimum: 1.2 x 1.2 x 1.2″ / 30 x 30 x 30 mm Maximum: 27.6 x 27.6 x 27.6″ / 700 x 700 x 700 mm (Fixed) 7.9 x 7.9 x 7.9″ / 200 x 200 x 200 mm (Auto)
Scan Speed	1 Second (Fixed) 45 Second (Auto)
Accuracy	0.05 mm
Stand-off Distance	11.4 x 18.9″ / 290 x 480 mm
Point Distance	6.69 to 7.9 mil / 0.17 to 0.2 mm
Image Resolution	1.3 MP
Light Source	LED
System Connection	USB-A 2.0
File Formats	ASC, OBJ, PLY, STL

System Requirements

OS Compatibility	Windows 7 Windows 8 Windows 10
Mobile App Compatible	No
CPU Requirement	Intel Core i5 and Faster
Memory Requirement	16 GB
GPU Requirement	NVIDIA GeForce GTX 660
VRAM Requirement	2 GB (Minimum)

Power & Environmental

Power Consumption	40 W
DC Input Power	12 VDC at 3.33 A

Physical

Load Capacity	11 lb / 5 kg
Dimensions	22.4 x 8.3 x 8.3″ / 570 x 210 x 210 mm
Weight	5.5 lb / 2.5 kg

Packaging Info

Package Weight	14.15 lb
Box Dimensions (LxWxH)	24.8 x 15.6 x 9.9″
