Advanced Network Devices IPCSL-RWB Overview

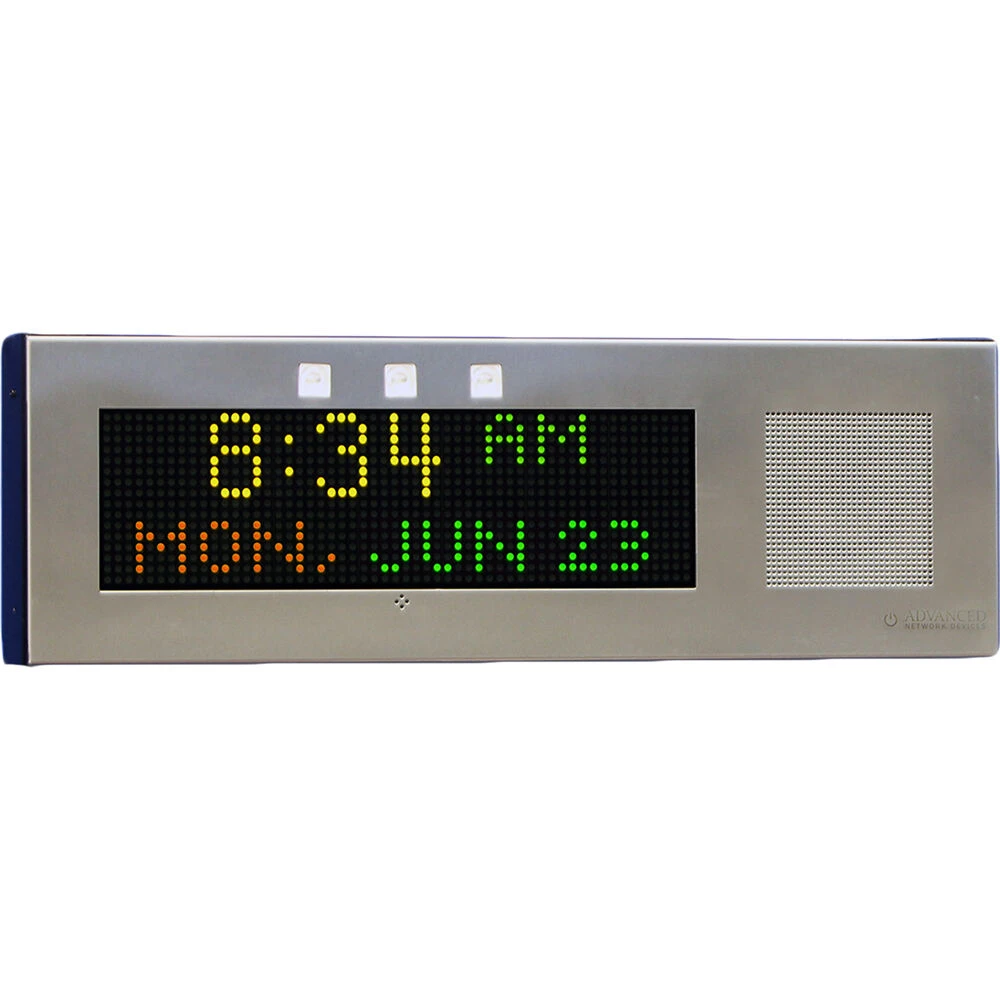

Keep employees and guests in your facility informed and connected with the IP Clock by Advanced Network Devices. This display features a multi-color auto-dimming LED for text and graphics and an 8″ speaker with 600 Ft² coverage.

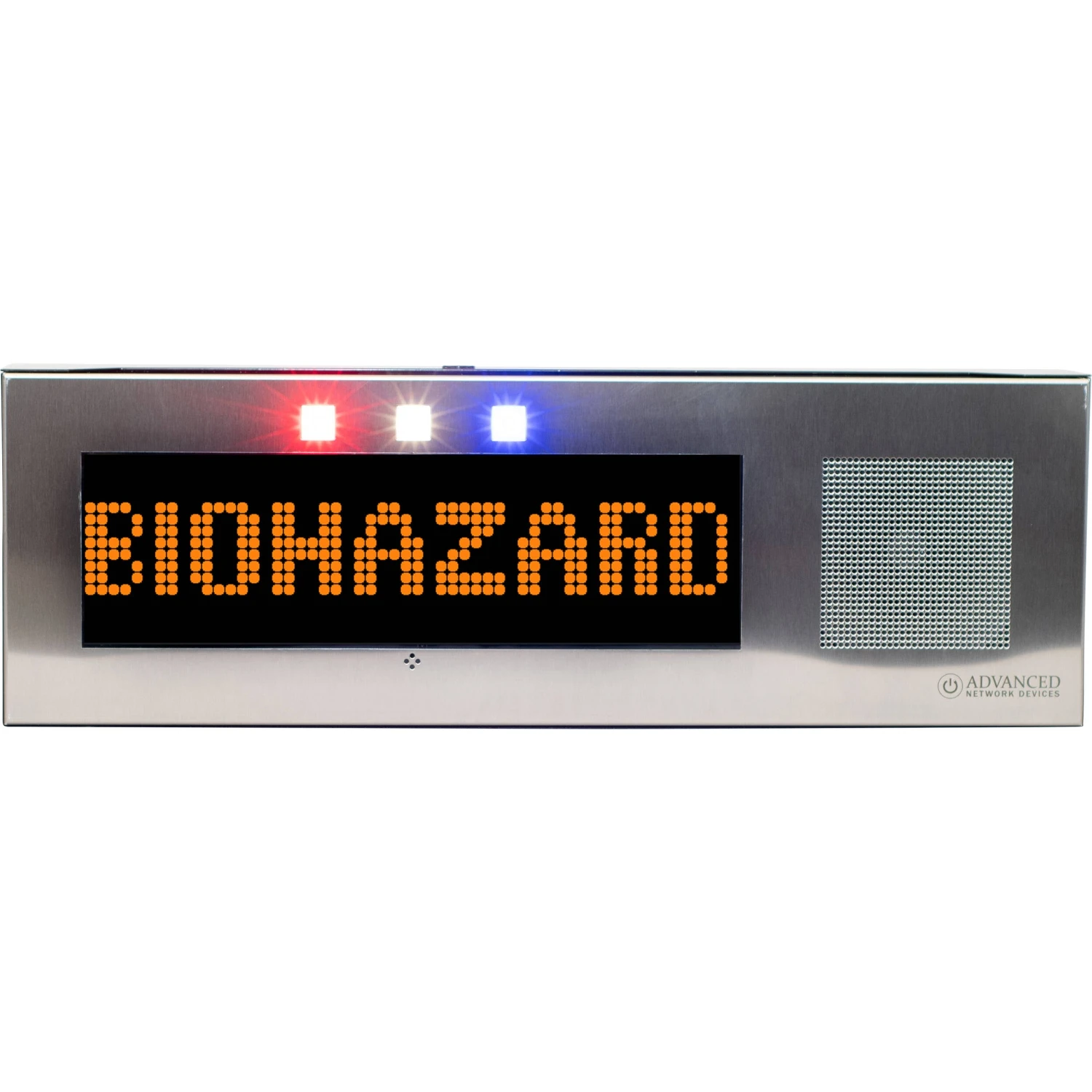

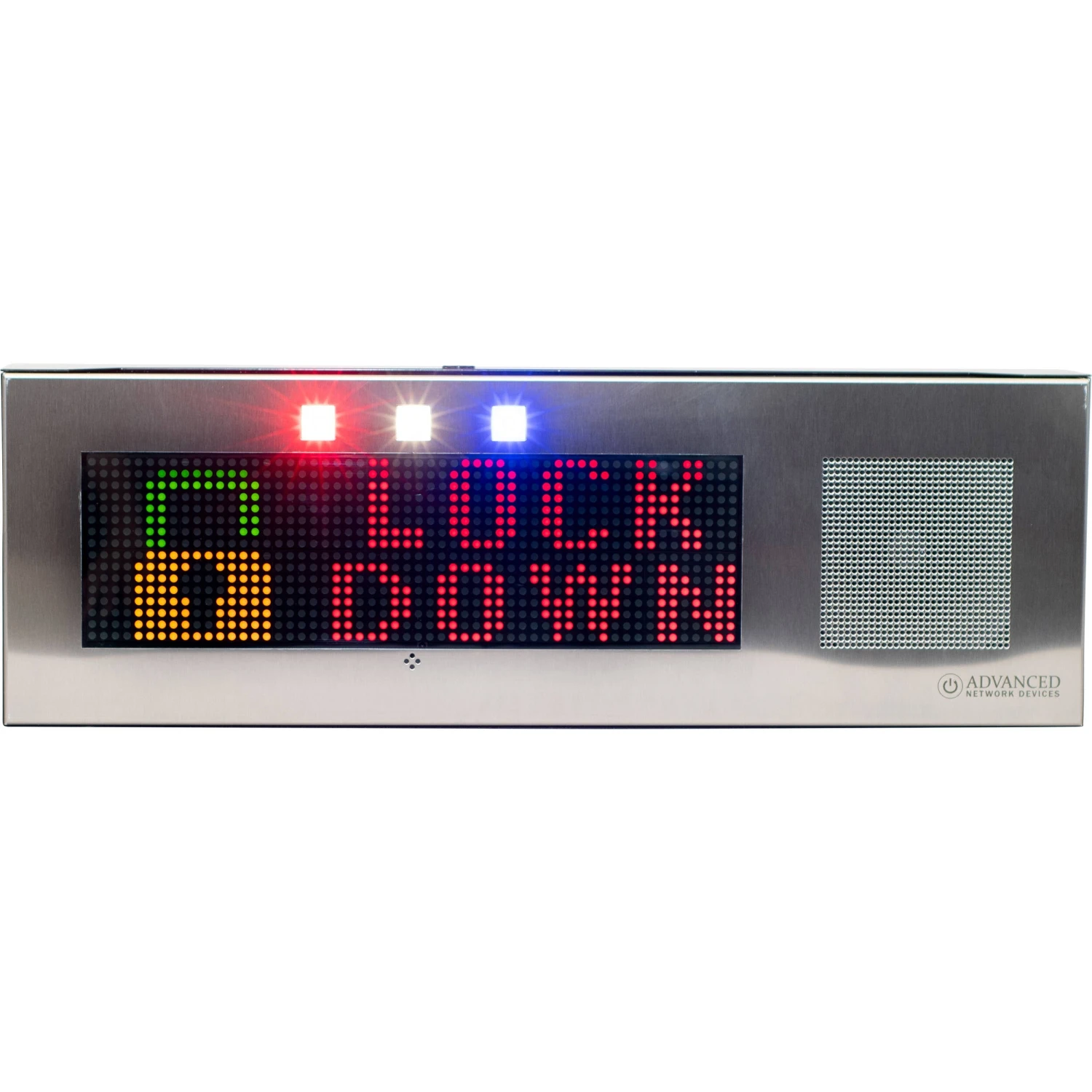

Communicate updates and announcements with the hands-free two way intercom. Take advantage of VoIP and SIP integration with multicast and broadcast support and a built-in web server. Use individual red, white, and blue LED flashes for emergency conditions or other urgent matters. This display supports Advanced Network Devices peripherals such as a strobe light, motion sensor, electronic lock, and call summary, all available separately. The ClockWise Campus software is included
Items Included
- Advanced Network Devices IP Clock (Large)
- Limited 2-Year Manufacturer Warranty
Additional Resources
Installation Guide
0.3 MB
Advanced Network Devices IPCSL-RWB Specs
| Compatibility |
Not Specified by Manufacturer |
| Panel Type |
Not Specified by Manufacturer |
| Display Size |
17″ |
| Touchscreen |
No |
| Ethernet |
10/100 Mb/s |
| Speaker |
8″ |
| Audio |
8W / 16W |
| Frequency Response |
60 Hz – 17 kHz |
| Sensitivity |
95dB, 1W / 1 M |
| Protocol |
|
| Interface |
2 GPI: 1 via RJ-11, 1 via Cable Harness 1 GPO 17.5 VDC |
| Power Source |
PoE |
| PoE Support |
PoE (IEEE802.3af) 15.4W or PoE+ (IEEE802.3at) 30W |
| Mounting |
1x Wall Mount Bracket |
| Certifications |
ISO |
| Operating Conditions |
14 to 122°F / -10 to 50°C at 0 to 95% Humidity |
| Cable Length |
Not Specified by Manufacturer |
| Dimensions |
28.14 x 9.2 x 3.88″ / 71.48 x 23.4 x 9.86 cm |
| Weight |
15 lb / 6.8 kg |
