Advanced Network Devices IPCSL-RWB-IC Overview

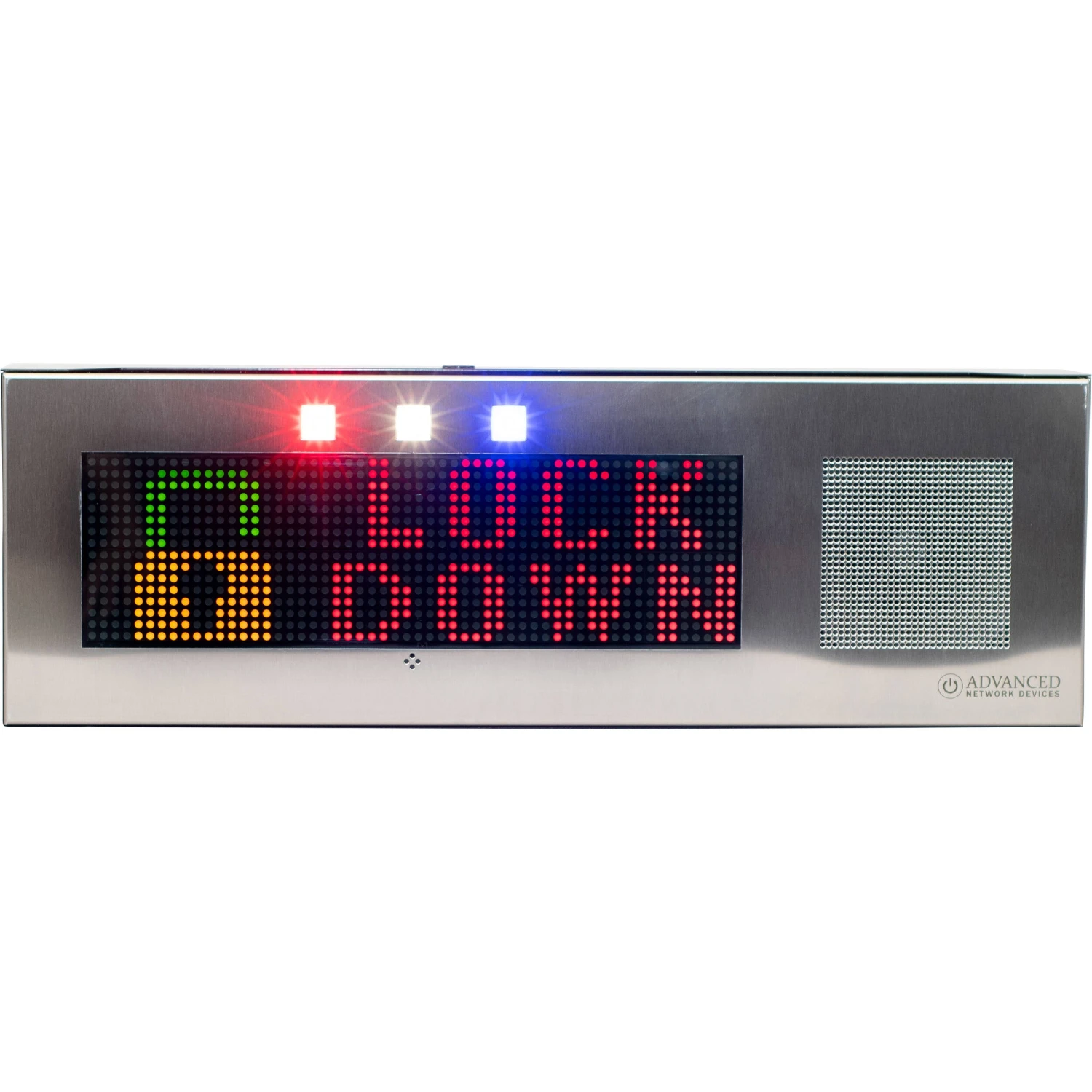

Notify multi-purpose spaces of urgent info with the Large InformaCast-Enabled IP Display Clock by Advanced Network Devices. This display features a multi-color auto-dimming LED for text and graphics and an 8″ high-efficiency speaker with 600 square foot coverage.
Communicate updates and announcements with the hands-free two way intercom. Take advantage of VoIP and SIP integration with multicast and broadcast support and a built-in web server. The display is enabled to receive InformaCast broadcasts. Use individual red, white, and blue LED flashes for emergency conditions or other urgent matters. This display supports Advanced Network Devices peripherals such as a strobe light, motion sensor, electronic lock, and call summary, all available separately. The unit includes the ClockWise Campus software.
Items Included
- Advanced Network Devices InformaCast-Enabled IP Display Clock (Large)
- Limited 2-Year Manufacturer Warranty
Additional Resources
Installation Guide
0.3 MB
Advanced Network Devices IPCSL-RWB-IC Specs
| Compatibility |
Not Specified by Manufacturer |
| Panel Type |
Not Specified by Manufacturer |
| Display Size |
17″ |
| Touchscreen |
No |
| Power Source |
PoE |
| PoE Support |
PoE (IEEE802.3af) 15.4W or PoE+ (IEEE802.3at) 30W |
| Ethernet |
10/100 Mb/s |
| Speaker |
8″ |
| Frequency Response |
60 Hz – 17 kHz |
| Sensitivity |
95 dB, 1W / 1 M |
| Protocols |
|
| Interface |
2 GPI: 1 via RJ-11, 1 via Cable Harness 1 GPO 17.5 VDC |
| Mounting |
1x Wall Mount Bracket |
| Certifications |
ISO |
| Operating Conditions |
14 to 122°F / -10 to 50°C at 0 to 95% Humidity |
| Cable Length |
Not Specified by Manufacturer |
| Dimensions |
28.14 x 9.2 x 3.88′ / 857.71 x 280.4 x 118.26 cm |
| Weight |
15 lb / 6.8 kg |
