Advanced Network Devices IPSWDHD-MW Overview

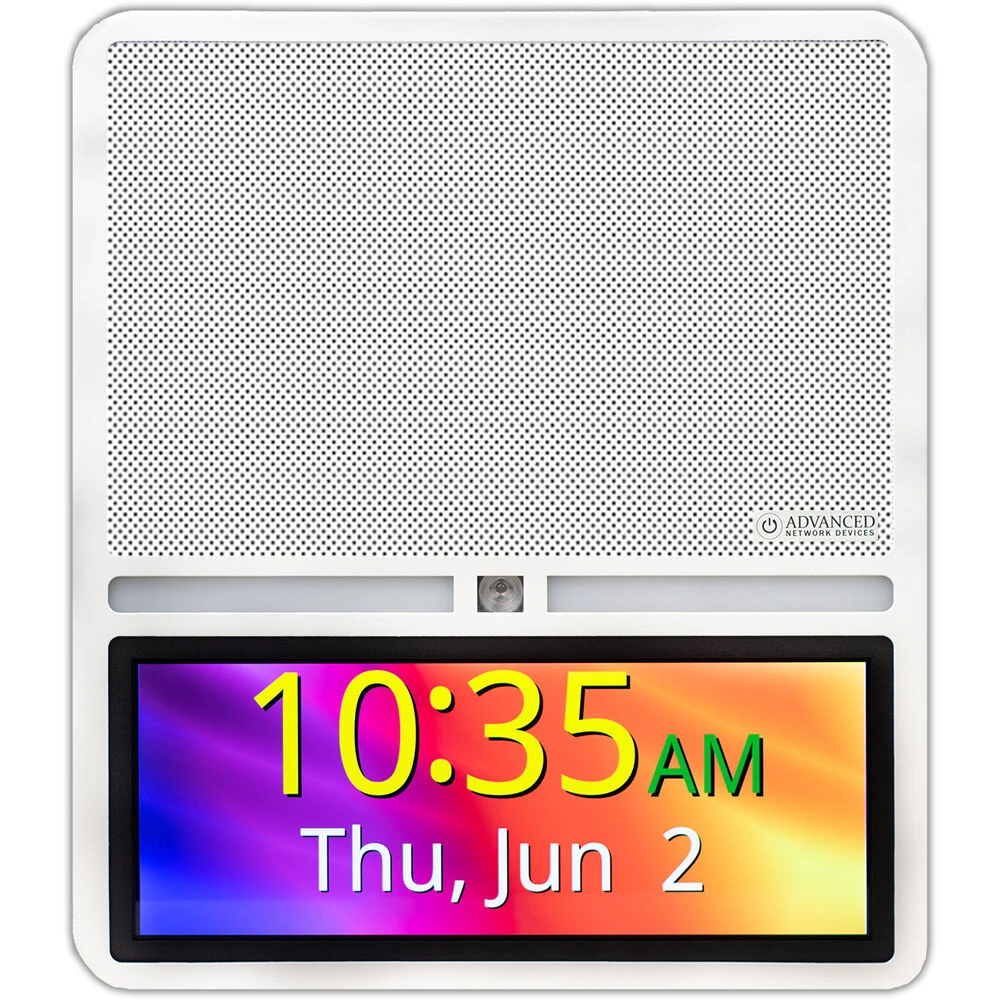

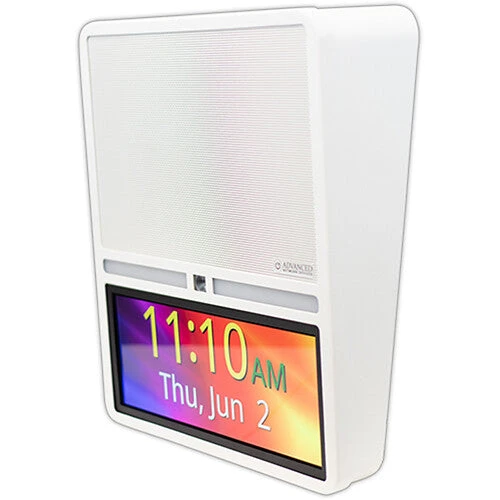

Alert and inform with the HD IP Display with Built-in Speaker by Advanced Network Devices. This display features a Full-Color HD LCD and an 8″ speaker with 600 Ft² coverage.
Communicate updates and announcements with the hands-free two way intercom. Take advantage of VoIP and SIP integration with multicast and broadcast support and a built-in web server. Use individual red, green, and blue LED flashes for emergency conditions or other urgent matters. The ClockWise Campus software is included.
Items Included
- Advanced Network Devices HD IP Display with Built-in Speaker (Matte White)
- Limited 2-Year Manufacturer Warranty
Additional Resources
Installation Guide
0.4 MB
Advanced Network Devices IPSWDHD-MW Specs
| Panel Type |
LCD |
| Display Size |
11.69″ |
| Native Resolution |
1920 x 720 |
| Touchscreen |
No |
| Audio I/O |
1x 1/8″ / 3.5 mm Line Output 1x 1/8″ / 3.5 mm Line Input |
| Ethernet |
10/100/1000 Mb/s |
| Built-In Speaker |
8″ |
| Frequency Response |
60 Hz-17 kHz |
| Sensitivity |
95 dB, 1W / 1 M |
| Supported Protocols |
|
| Interface |
|
| Power Source |
PoE |
| Power Input |
PoE+ (IEEE802.3at) 30.0W |
| Mounting |
Back: 1x Wall Mount Bracket |
| Certifications |
ISO |
| Operating Conditions |
14 to 122°F / -10 to 50°C at 0 to 95% Humidity |
| Cable Length |
Not Specified by Manufacturer |
| Dimensions |
15.58 x 13.51 x 4.54″ / 39.57 x 34.32 x 11.53 cm |
| Weight |
10.5 lb / 4.8 kg |
| Package Weight |
12.7 lb |
| Box Dimensions (LxWxH) |
16.7 x 14.5 x 4.8″ |
