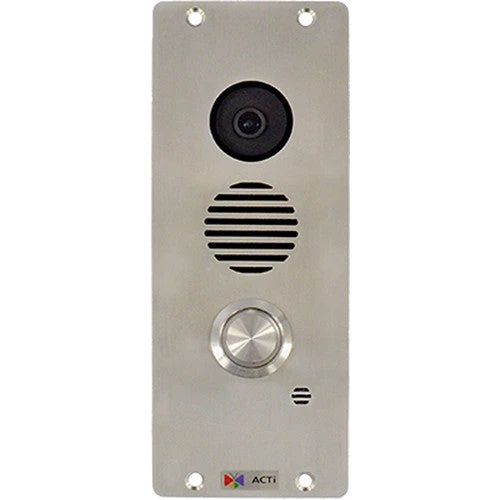

ACTi Q970 2MP Outdoor Intercom Camera With 3.6mm Fixed Lens(Acti Q970 2mp Outdoor Intercom Camera With 3 6mm Fixed Lens)

The Q970 2MP Outdoor Intercom Camera from ACTi features a 3.6mm fixed lens and a f/1.85 aperture. With a 1/2.9″ progressive scan CMOS sensor, the camera captures images at a maximum resolution of 1920 x 1080 at 30 fps. The front-plate-mounted camera can be integrated into an intercom system to add a microphone and speaker. It uses H.264 and MJPEG compression to maximize storage and bandwidth efficiency, and a memory card slot supports microSD cards for on-site recording and storage. Image enhancements include basic WDR, white balance, brightness, contrast, sharpness, AGC, and flickerless. The system is rated IP66 for outdoor use and IK10 for vandal resistance.

ACTi Q970 2MP Outdoor Intercom Camera with 3.6mm Fixed Lens

Camera
Device Type	Intercom
Sensor	2 MP 1/2.9″ progressive scan CMOS
Effective Pixels	1984 x 1105 (2.19 MP)
Horizontal Resolution	1100 TVL
S/N Ratio	52 dB

Lens
Focal Length / Aperture	3.6mm fixed lens, f/1.85
Iris	Fixed iris fixed focus
Lens Mount	Board mount
Field of View	Horizontal: 87.5° Vertical: 48.1°

Video
Compression	H.264 (Baseline/Main/High-Profile), MJPEG
Resolution	1920 x 1080 at 30 fps 1280 x 720 at 30 fps 800 x 600 at 30 fps 640 x 480 at 30 fps
Streaming	Simultaneous dual streams based on two configurations
Bit Rate	28 kb/s to 6 Mb/s (per stream) Mode: Constant, variable
Wide Dynamic Range	Basic WDR (75 dB)
Image Enhancement	White balance, brightness, contrast, sharpness, AGC, and flickerless
Privacy Masking	Four configurable regions
Text Overlay	Yes

Audio
Compression	8 kHz, 16-bit encoding, mono, G.711
Audio Streaming	2-way, built-in microphone and speaker, mic input line input

Network
Protocols	IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Security	IP Address Filtering, HTTPS Encryption, Password Protected User Levels, Anonymous Login, IEEE 802.1X Network Access Control
Ethernet Port	1 x RJ45

Event
Event Trigger	Touch summary, external device through digital input, sound detection
Event Response	Notify control center, change camera settings, command other devices, email notification with snapshots, play the audio file, push notification to mobile device, save video to local storage, upload video to NVR server, upload video or snapshot to FTP server, activate external device through digital output

Interface
Local Storage	microSDHC/microSDXC memory card slot (card not included)
Ports	1 x RS-485, serial 1 x terminal block, audio input 2 x terminal block, digital input 2 x terminal block, digital output

General
Power	12 VDC / PoE Class3 (IEEE 802.3af)
Power Consumption	PoE: 12.95 W
Approvals	CE, FCC
Casing	IP66 weatherproof front plate IK10 vandal-resistant metal casing
Operating Temperature	-40 to 131°F / -40 to 55°C
Storage Temperature	-40 to 131°F / -40 to 55°C
Mount Type	Flush
Dimensions	3.2 x 8.4 x 1.9″ / 8.2 x 21.2 x 4.7 cm
Weight	1.6 lb / 728 g
