ACTi A29 Overview

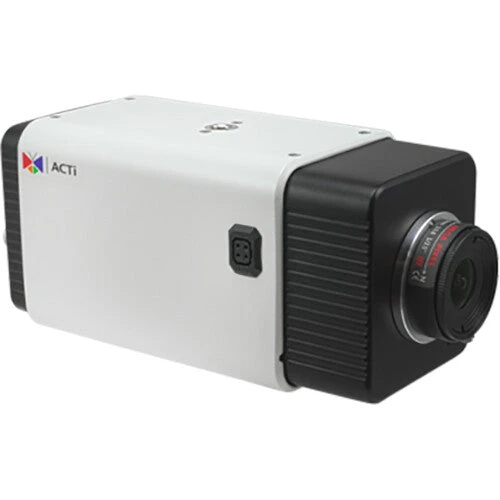

Monitor a room or hallway with the white A29 2MP Network Box Camera from ACTi. This unit uses a 1/2.8″ progressive scan CMOS image sensor to capture 1080p resolution video at 60 fps. It is equipped with a CS mount and comes bundled with a 2.8mm fixed lens that delivers a 108.6° horizontal field of view. Two-way audio communication is possible thanks to an audio input and output. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
This box camera complies with ONVIF profiles G, Q, S, and T, making it compatible with a wide range of surveillance devices.
ACTi A29 Specs
| Sensor | 2 MP 1/2.8″ CMOS |
| Lens Mount | CS |
| Focal Length | 2.8mm |
| Maximum Aperture | f/1.8 |
| Lens Field of View | Horizontal: 108.6° Vertical: 63.6° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Shutter Speed | 1/64,000 to 1/5 Seconds |
| Streaming Resolution | 1920 x 1080 at 60 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711 |
| Audio I/O | Input: 1 x Terminal Block (Unspecified Pin Count) Output: 1 x Terminal Block (Unspecified Pin Count) |
| Pan/Tilt | None |
| Security | Anonymous Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection |
| Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP |
| Application Programming Interface (API) | ONVIF Profiles G, Q, S & T |
| Analytics | People Detection, Car Detection, Face Detection, Tampering Detection, People Line Crossing Detection, People Enter Area Detection, People Exit Area Detection, People Loitering Detection |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | None |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Power Source | DC, PoE 802.3af (15 W) |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Inputs/Outputs | 1 x RJ45 1 x Power 1 x Serial 9-Pin (RS-485) 2 x Unspecified Block |
