AC Infinity PN AI-APT9 Overview
Keep your cabinet-stored A/V equipment cool with the AC Infinity AIRPLATE T9 A/V Cabinet Triple-Fan Cooling System. Its triple-fan design moves up to 156 CFM of air while maintaining a low 21 dBA noise level to minimize distractions. The included digital controller has a digital display to view the status of your system and is expandable to up to six total fans. The included mounting template will help ease the installation process.
Thermal Controller

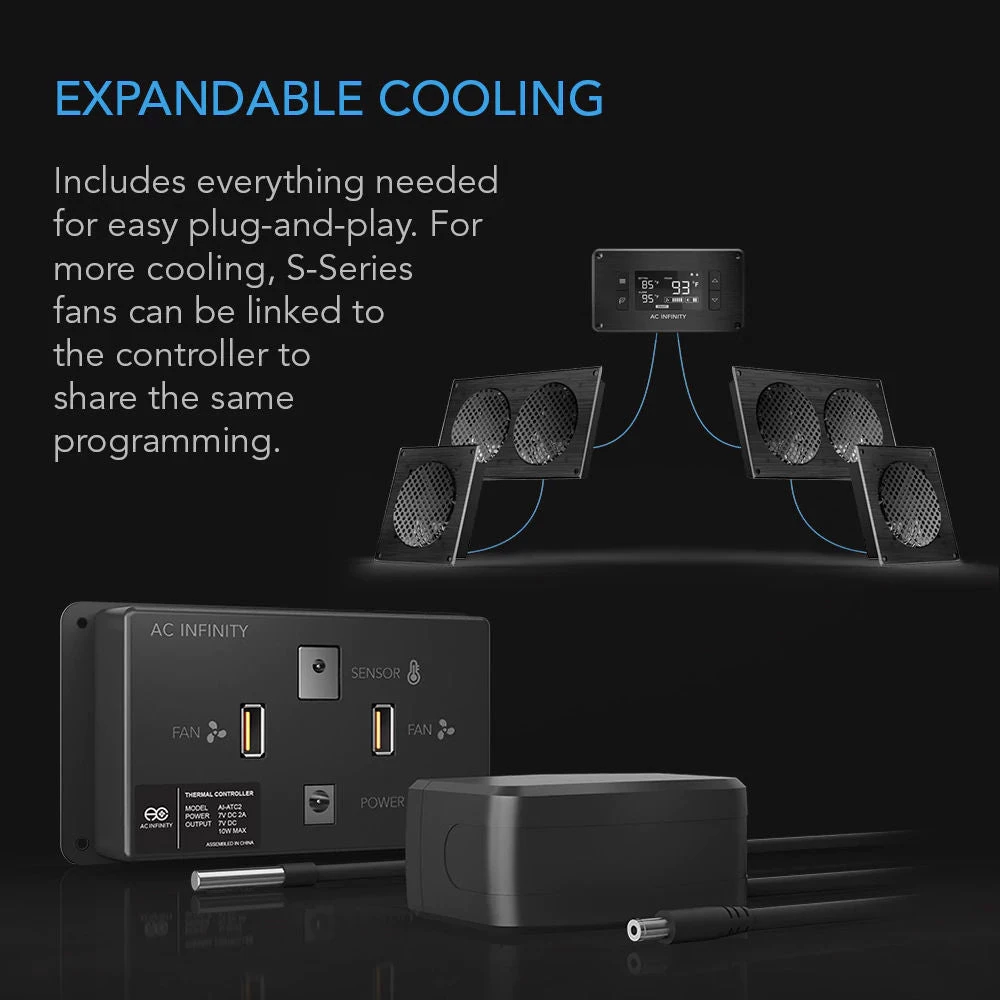

Connect Additional Units

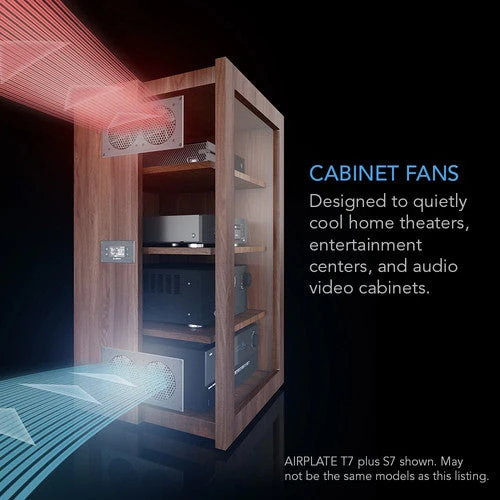

Suitable for Various Applications
Additional Features
- Designed for cooling cabinets that require minimal noise
- Automated programming that self-adjusts cooling power in response to changing temperatures

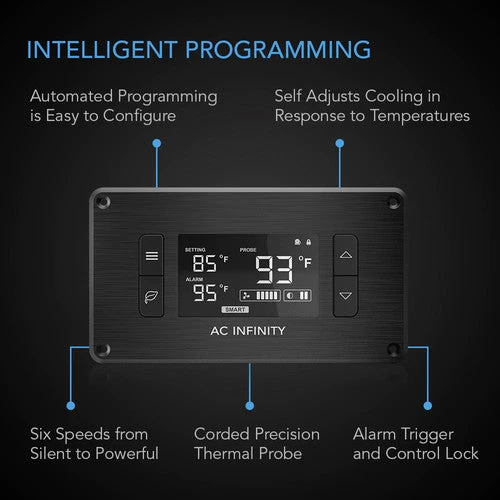

- Controller panel with an LCD, alarm system, display lock, six fan speeds, two buffer options, and memory
- Fan and controller contain CNC-machined aluminum frames with a brushed black finish
AC Infinity PN AI-APT9
| Number of Fans | 3 |
| Fan Airflow | 156 CFM |
| Noise Level | 21 dBA |
| Static Pressure | 1 mm H2O |

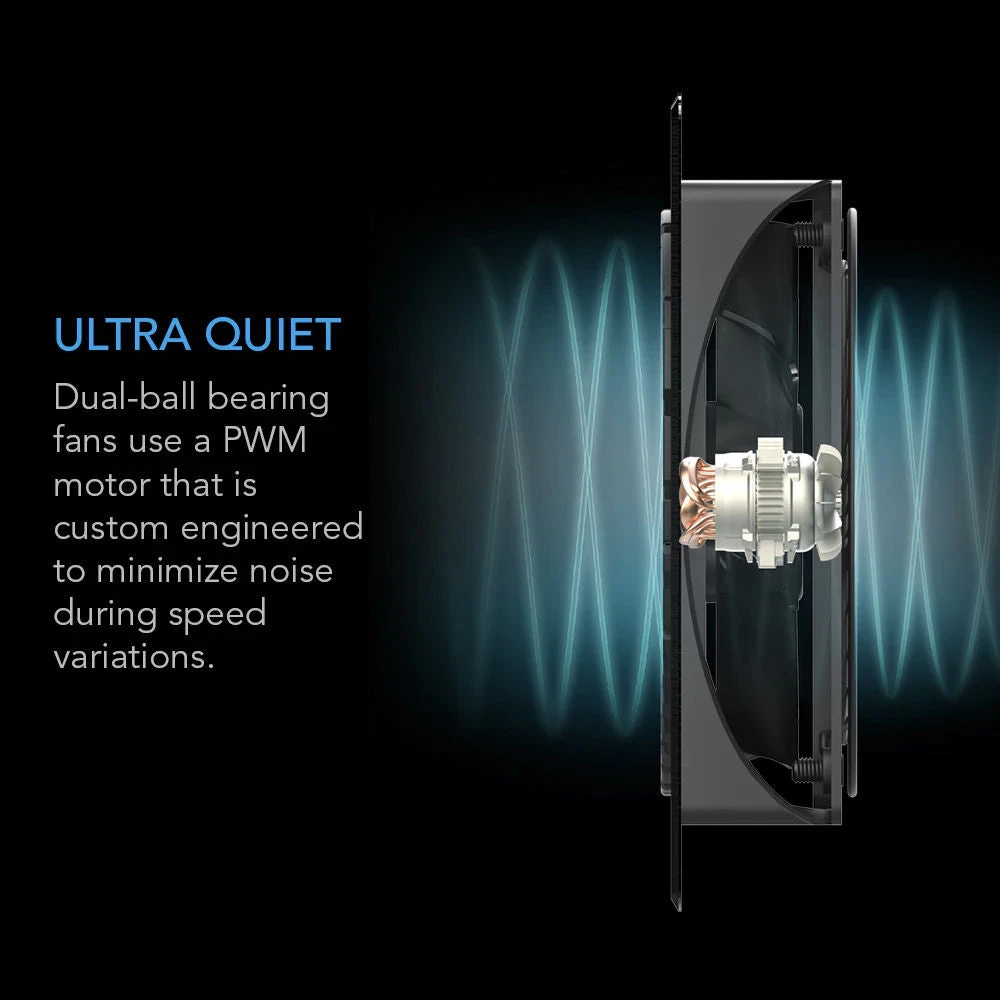

| Fan Bearing | Dual-Ball |
| Operating Conditions | Temperature: 14 to 230°F / -10 to 110°C Humidity: 35 to 85% RH |
| Operating Voltage | 3 to 7 VDC |
| Power | 3.6 W |
| Current | 0.72 A |
| AC Power Requirements | 100 to 240 VAC |
| Display Size | 2.25 x 1.25″ / 4.7 x 3.2 cm |
| Cord Length | 6′ / 1.83 m |
| Life Expectancy | L10: 67,000 Hours |
| Approvals | Fan Quality: UL, CE, TUV, RoHS |
| Probe | Length: 6′ / 1.83 m |

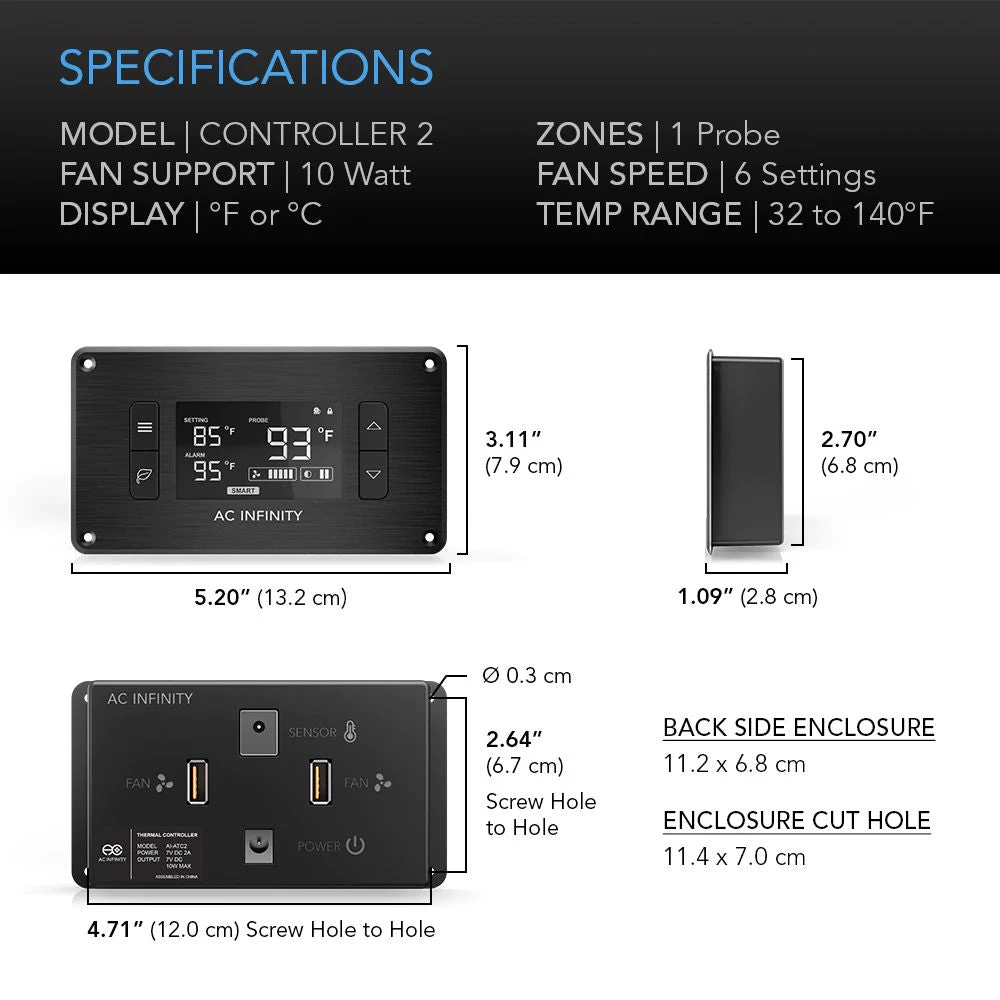

| Controller | Total Dimensions: 5.2 x 3.11 x 1.1″ / 13.2 x 7.9 x 2.8 cm Required Mounting Hole: 4.48 x 2.76″ / 11.4 x 7 cm |

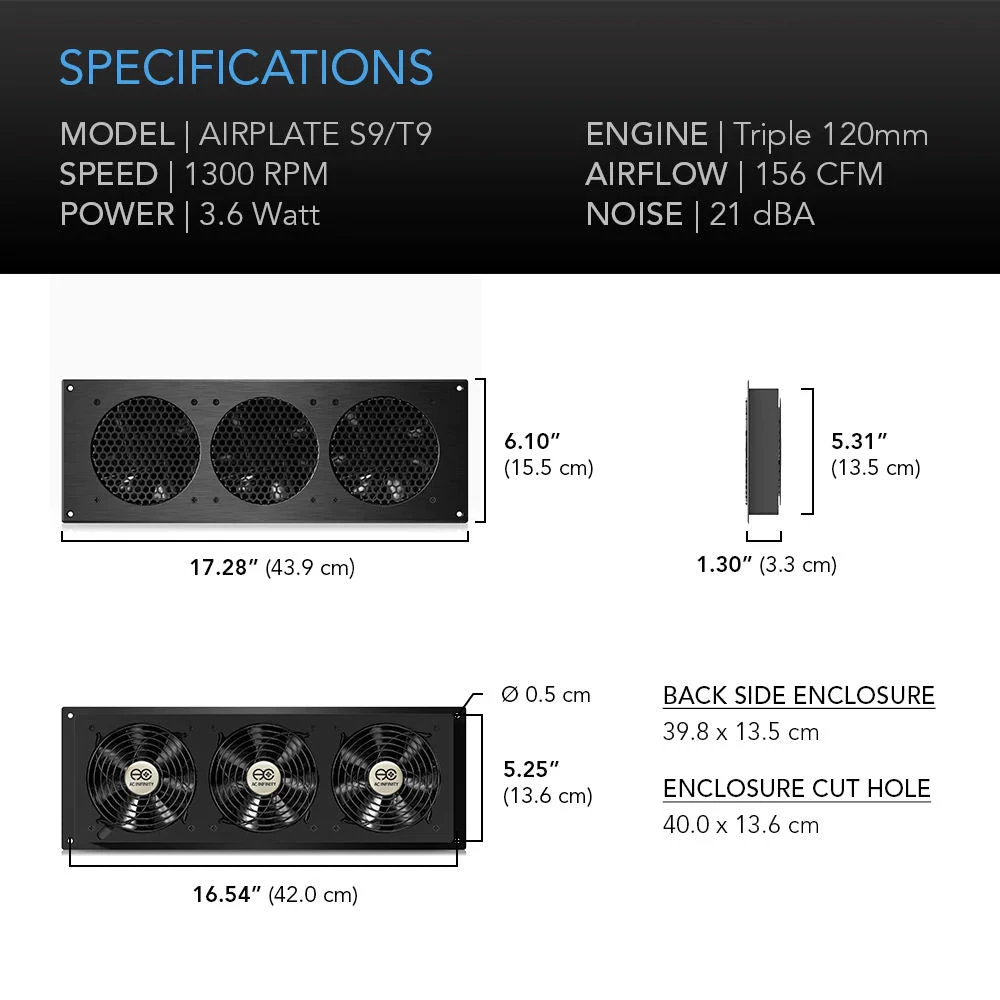

| Fan Dimensions | Total: 17.5 x 6.1 x 1.3″ / 44.5 x 15.5 x 3.3 cm Required Mounting Hole: 15.75 x 5.35″ / 40 x 13.6 cm |
| Weight | Not Specified by Manufacturer |
| Package Weight | 3.6 lb |
| Box Dimensions (LxWxH) | 25 x 7.4 x 2.4″ |
In the Box
