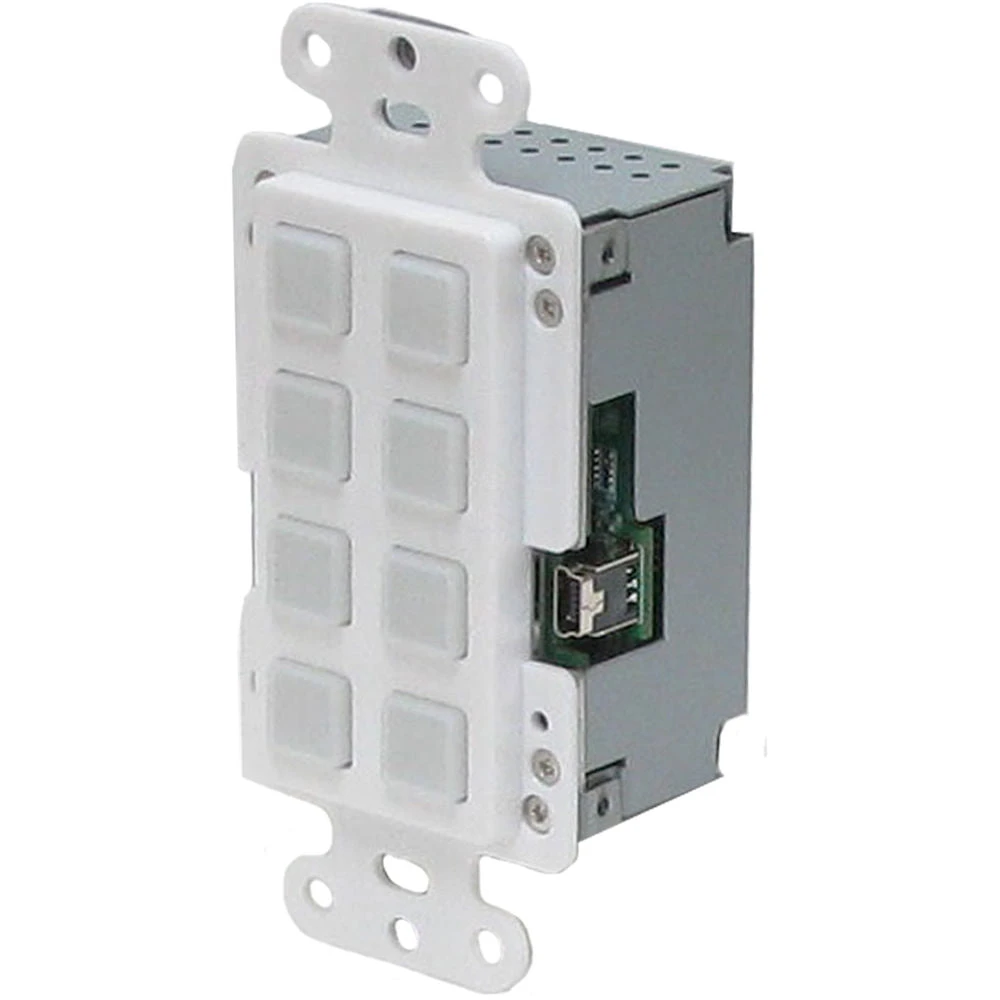

A-Neuvideo 8-Button IP Wall Plate Control Keypad(A Neuvideo 8 Button Ip Wall Plate Control Keypad) - Image 2

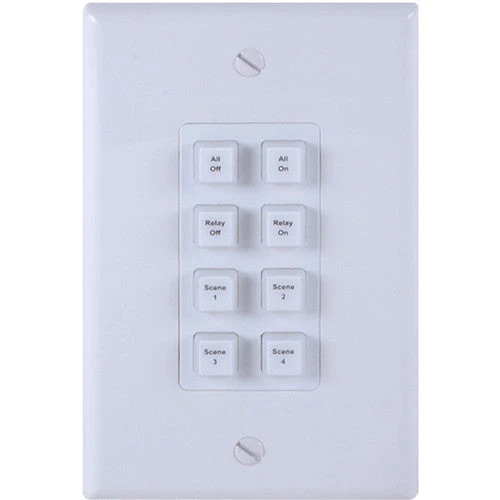

A-Neuvideo 8-Button IP Wall Plate Control Keypad(A Neuvideo 8 Button Ip Wall Plate Control Keypad) - Image 3

A-Neuvideo 8-Button IP Wall Plate Control Keypad(A Neuvideo 8 Button Ip Wall Plate Control Keypad)

Original price was: $308.00.Current price is: $97.99.

SKU: DGFUB 20212449296 Categories: Installation, TV & Entertainment, TV & Mobile Tags: A-Neuvideo ANI-8WP, Installation, TVs Entertainment

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Programmable & Controllable via Ethernet
Backlit Buttons with Customizable Labels
DC or PoE Power

Control a variety of compatible equipment with the A-Neuvideo 8-Button IP Wall Plate Control Keypad . It supports up to 128 commands and features programmable backlit summarys with customizable labels. The summarys can be programmed via Ethernet through the WebGUI interface and supports WebGUI, Key Pad, and Telnet control protocols.

8 macro summarys and 8 extra macro programmable commands via WebGUI provide up to 128 commands.

Relay output for additional device control.

Scheduling control for date-/time-specific events.

Supports Key Pad, Telnet, and WebGUI control.

PoE or external DC power supply.

1-gang wall plate design with adjustable LED intensity.

56 summary labels included; 28 pre-printed, 28 blank.

UPC: 857391003789

In the Box

A-Neuvideo 8-Button IP Wall Plate Control Keypad

USB Type-A to Mini-USB OTG Cable
2 x 1/8″ Terminal Block Pitch
White Decora Plate
56 x Button Stickers
5 V / 2.6 A Power Adapter
Limited 3-Year Warranty

Compatibility	Any device that supports Telnet
Control Buttons	8
Connectors	2 x 2-pin terminal block output for relay 1 x Ethernet for control/programming 1 x mini-USB port for firmware upgrade 1 x 2-pin terminal block for power (24 V, 10 A, 100 mOhms @ 1 A, 6 VDC)
ESD Protection	&pm;8 kV (air-gap discharge, human body model) &pm;4 kV (contact discharge, human body model)
Enclosure Material	Metal
Mounting	Single gang
Power Supply	5 V / 2.6 A DC
Power Consumption	3.3 W
Regulatory Compliance	CE, FCC, UL
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Humidity (Non-Condensing)	20 to 90%
Dimensions (W x H x D)	1.8 x 4 x 1.5″ (46 x 103.5 x 35.5 mm) excluding jack
Weight	3.2 oz (90.7 g)

Packaging Info
Package Weight	1.3 lb
Box Dimensions (LxWxH)	8.7 x 7.2 x 3.2″
