2N 02777-001 Overview

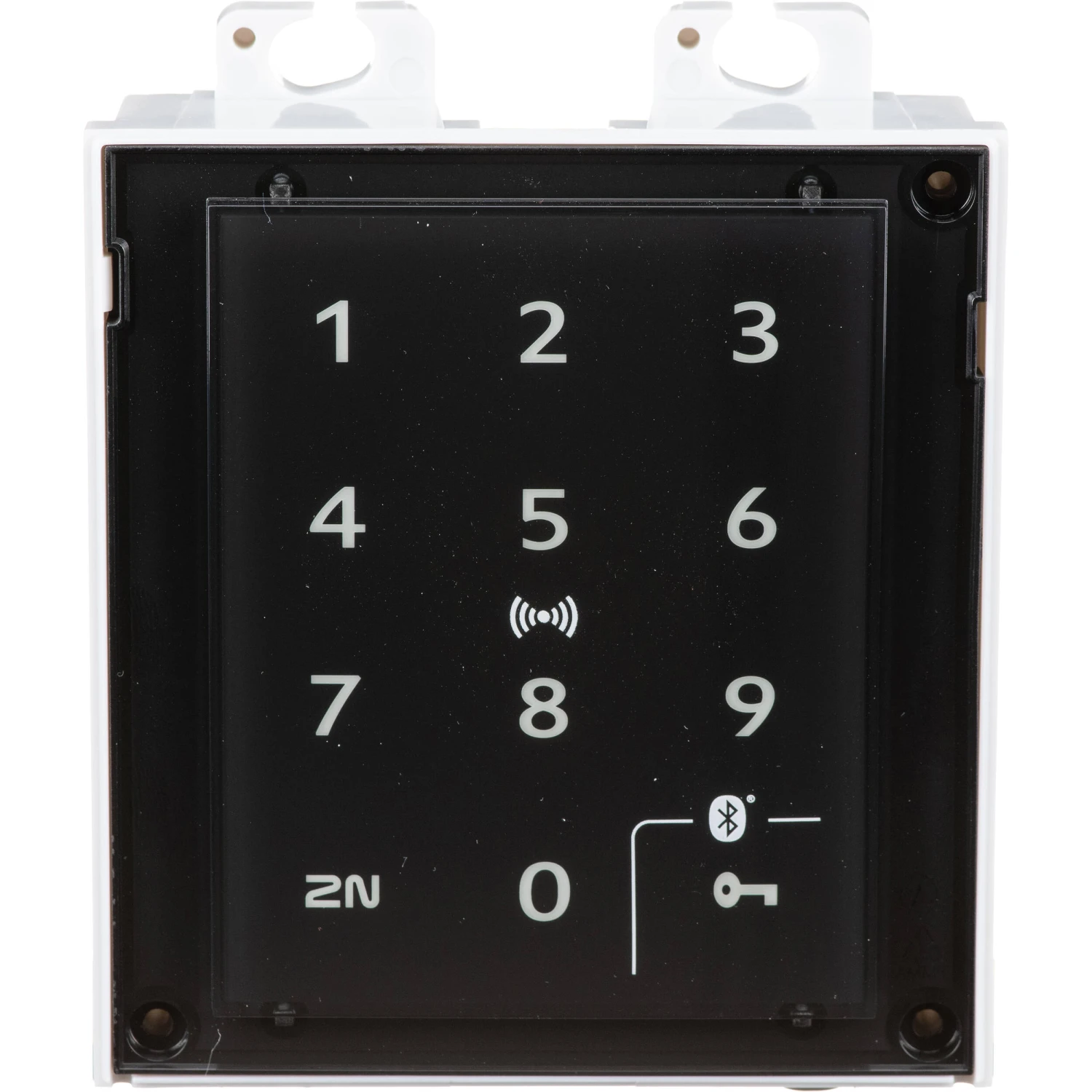

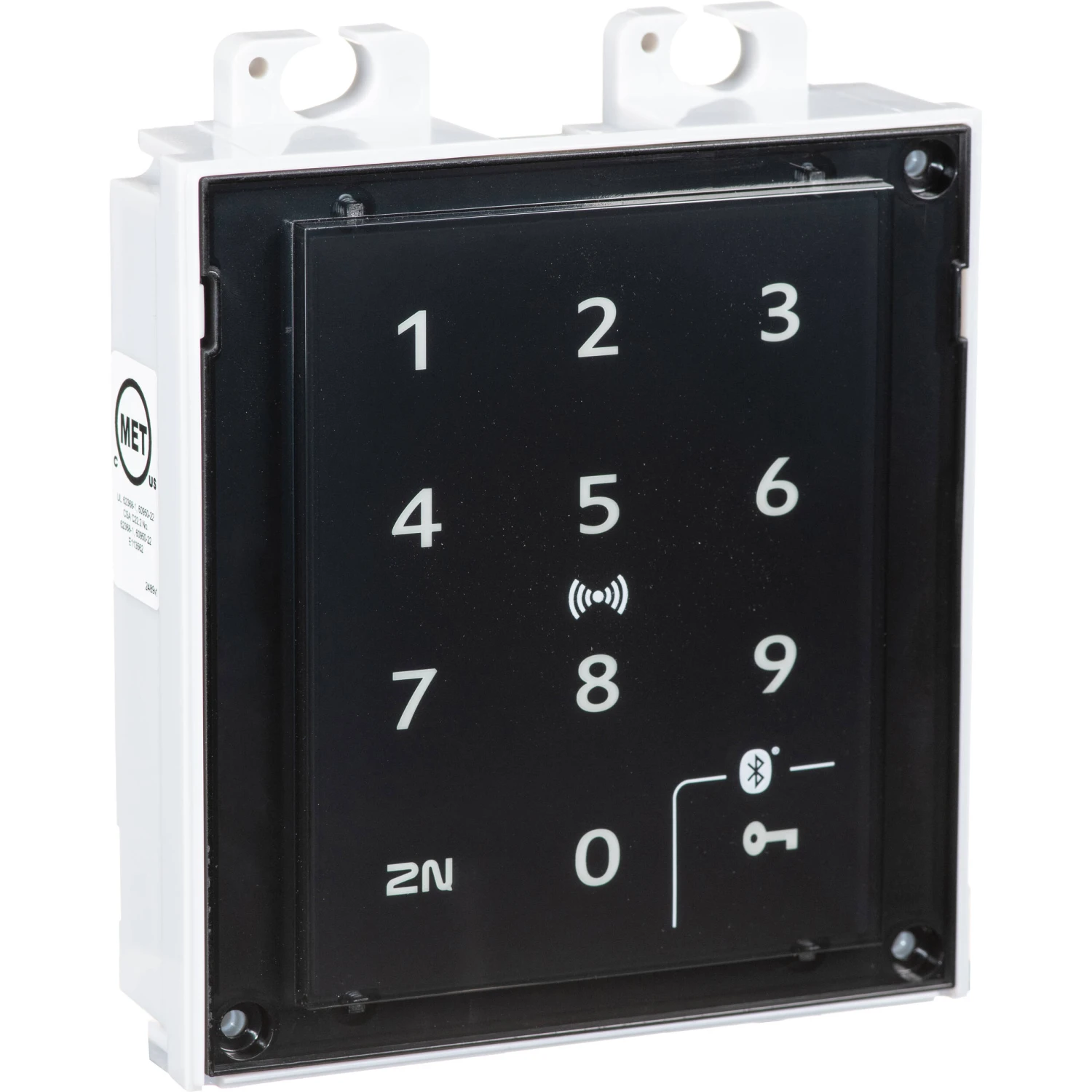

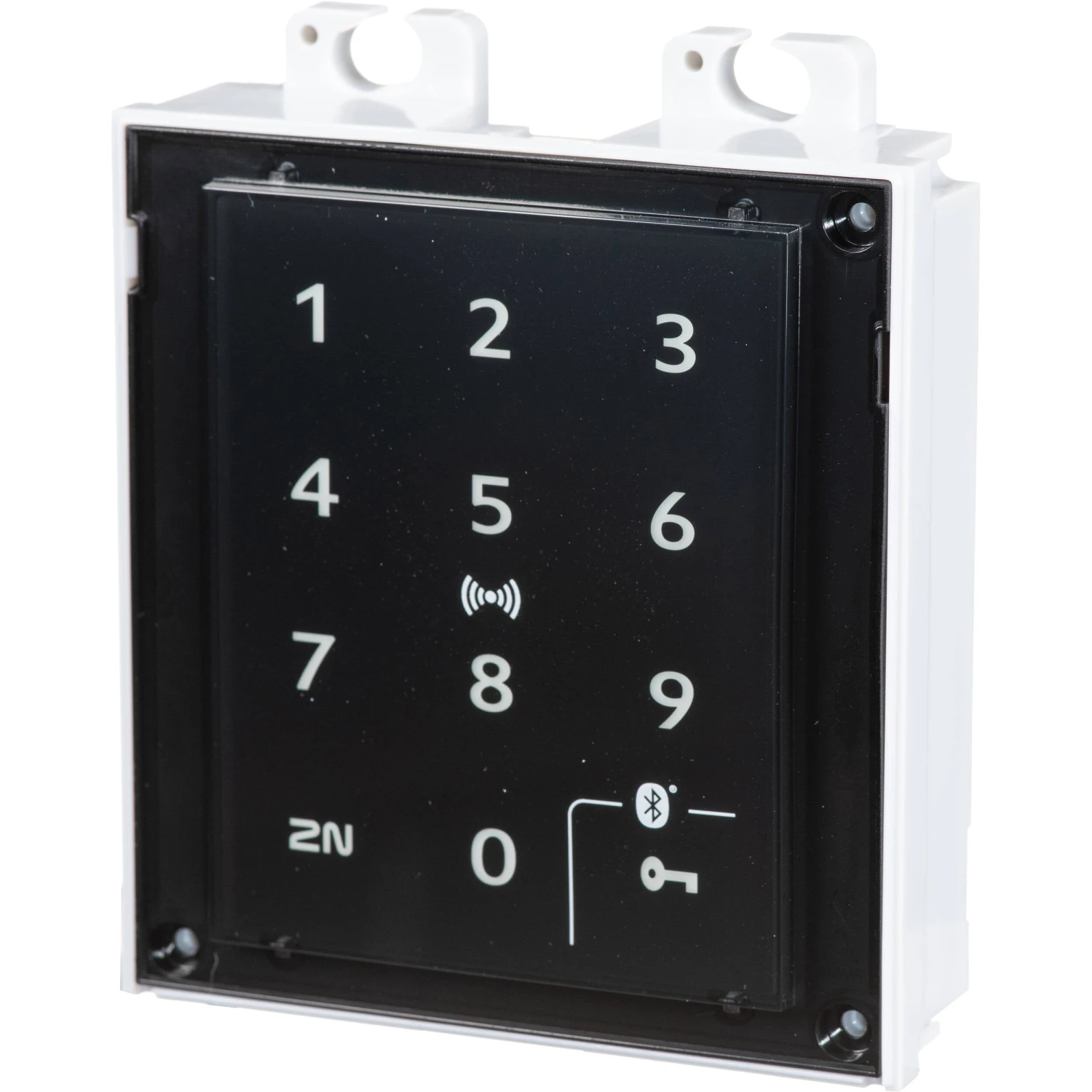

Implement access control, security, and authentication at an entryway with the Access Unit 2.0 Touch Keypad & Secured RFID Reader with Bluetooth (125 kHz & 13.56 MHz, Secured) from 2N. This reader utilizes 125 kHz and 13.56 MHz technology to recognize and read RFID access control cards. Additionally, this device features a touch keypad to support access via a fingerprint module. A mobile app grants remote access. Bluetooth 5.0 LE connectivity in this unit has a range up to 30′.
This reader is housed in an IP54 and IK08-rated enclosure for protection from water, dust, and vandalism.
Items Included
- 2N Access Unit 2.0 Touch Keypad & Secured RFID Reader with Bluetooth (125 kHz & 13.56 MHz, Secured)
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
2N 02777-001 Specs
| Compatibility |
Various RFID Access Cards |
| Wireless |
Bluetooth 5.0 |
| Mobile App Compatible |
Yes: Android & iOS |
| Power Source |
PoE, DC Input |
| DC Input Power |
12 VDC at 1 A |
| Mounting |
1x Flush/Surface |
| Color |
Black |
| Material of Construction |
Zinc Cast Frame, Glass |
| Environmental Resistance |
Dust/Water-Resistant (IP54) |
| Impact Resistance |
Impact-Resistant (IK08) |
| Operating Conditions |
-40 to 140°F / -40 to 60°C at 10 to 95% Humidity |
| Storage Conditions |
-40 to 158°F / -40 to 70°C |
| Cable Length |
Not Specified by Manufacturer |
| Dimensions |
Not Specified by Manufacturer |
| Weight |
1.76 lb / 798 g |
| Package Weight |
0.485 lb |
| Box Dimensions (LxWxH) |
5.7 x 5 x 1.3″ |
